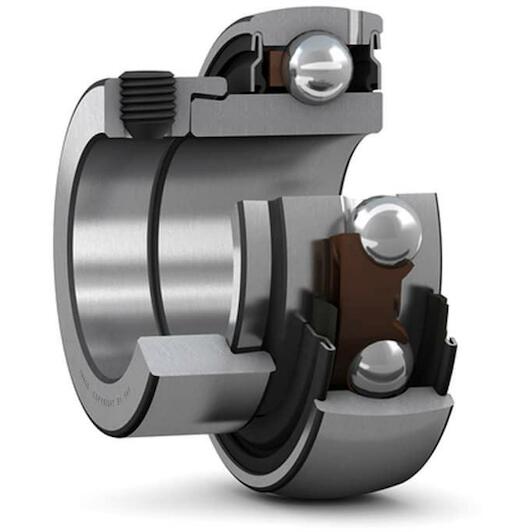

SKF YET 211-200 Y insert bearing cylindrical with eccentric ring for inch shaft, 50.8 x 100 mm

This article is not available

Product description:

  • Self-aligning snap ring bearing for normal conditions
  • Fixation on shaft by means of eccentric ring
  • Spherical outer ring with lubrication holes and inner ring extended at one end
Key features according to our expert
  • Inner diameter: 50,8 mm
  • Width: 48,4 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On one side
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576617379
  • Supplier number: SKF YET 211-200
Inner diameter
50,8 mm
Width
48,4 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On one side
Outer diameter
100 mm
Lubricant
Grease
Retaining feature, inner ring
Eccentric collar
Basic static load rating
29 kN
Relubrication feature
With
Cage
Non-metallic
Rubber seating ring
Without
Width, outer ring
25 mm
Sealing type
Contact, standard
Outer ring type
Spherical
Material, bearing
Bearing steel
Sealing
Seal on both sides
Limiting speed
3,600 r/min
Note
Limiting speed with shaft tolerance h6
Width, total
48.4 mm
Width, inner ring
32.6 mm
Bore diameter
50.8 mm
Basic dynamic load rating
43.6 kN
Coating
Without
Outside diameter
100 mm
Rolling elements
Balls
