What shaft size is this insert bearing designed for?

It is designed for inch shafts with a diameter of 50,8 mm (2 inches).

How do you mount this SKF insert bearing on the shaft?

You lock the bearing onto the shaft by tightening the set screws on the extended inner ring.

What are the outer dimensions of the bearing?

It features an outer diameter of 100 mm and a total inner ring width of 55,6 mm.

Is this Y-bearing suitable for high-temperature applications?

No, this standard steel model is not designed for high-temperature environments.

What materials are used for the bearing and cage?

The bearing is made of steel and equipped with a composite cage.

SKF YAR 211-200-2F Y insert bearing cylindrical with set screw for inch shaft, 50.8 x 100 mm

Supplier number: SKF YAR 211-200-2F | EAN 7316577754684

Recommended Retail Price €160.91

79.60 tax incl.

€65.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Stable shaft support for industrial machinery

Practical benefits

Quick and secure locking: Tightening the two set screws lets you mount the extended inner ring firmly onto any 50.8 mm shaft.
Handles alternating rotation smoothly: The heavy-duty steel insert maintains full stability and reliability whether your equipment runs in constant or reversing directions.
Reliable Skf bearing protection: Integrated contact seals with flingers keep contaminants out, ensuring you benefit from a long service life with minimal maintenance.

In a nutshell

The right choise for

With the Skf yar 211-200-2F insert bearing, you achieve fast and dependable shaft support on equipment with a 50.8 mm shaft. The inner ring extended on both sides and integrated set screws allow you to lock the steel bearing firmly in place without specialized shaft machining. Featuring a durable steel build with a composite cage, it maintains smooth and reliable operation in both constant and alternating rotational directions. Measuring 100 mm in outer diameter and 55.6 mm in total width, it is built for quick maintenance and replacement in conveyor drives and industrial machinery.

Product information FAQ

€79.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 50,8 mm
Width: 55,6 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 100 mm

Product description

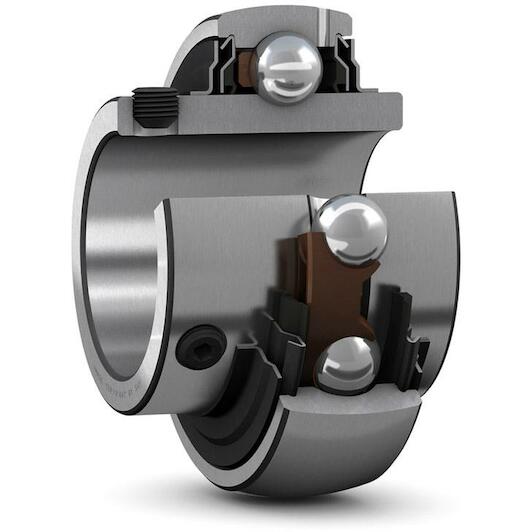

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

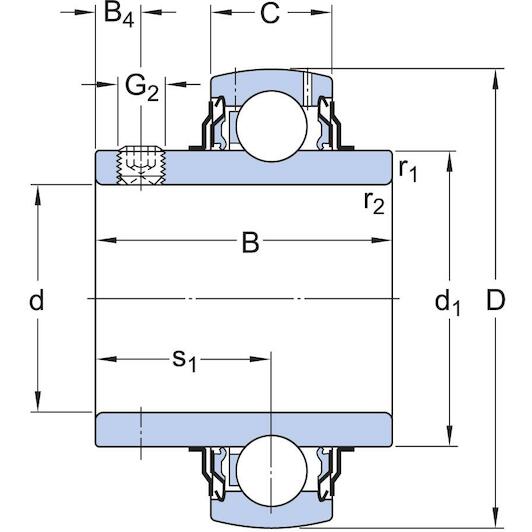

All Features

Inner diameter: 50,8 mm
Width: 55,6 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 100 mm
Width, outer ring: 25
Basic static load rating: 29
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 3600
Outer ring type: Spherical
Width, total: 55.6
Width, inner ring: 55.6
Shaft diameter: 50.8
Bore diameter: 50.8
Basic dynamic load rating: 43.6
Coating: Without
Outer diameter: 100
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190902
EAN 7316577754684
Supplier number SKF YAR 211-200-2F

Frequently asked questions about this product

Answered by specialists

What shaft size is this insert bearing designed for?: It is designed for inch shafts with a diameter of 50,8 mm (2 inches).
How do you mount this SKF insert bearing on the shaft?: You lock the bearing onto the shaft by tightening the set screws on the extended inner ring.
What are the outer dimensions of the bearing?: It features an outer diameter of 100 mm and a total inner ring width of 55,6 mm.
Is this Y-bearing suitable for high-temperature applications?: No, this standard steel model is not designed for high-temperature environments.
What materials are used for the bearing and cage?: The bearing is made of steel and equipped with a composite cage.
