What shaft diameter is this insert bearing designed for?

This bearing is designed for a metric shaft with a diameter of 30 mm.

How is the bearing secured to the shaft?

You mount it easily onto the shaft using an eccentric locking collar.

What are the outer dimensions of this SKF bearing?

The bearing has an outside diameter of 62 mm and a total width of 48.4 mm.

Which rotation direction is this bearing suitable for?

Due to the eccentric locking collar, it is intended for applications with a constant direction of rotation.

Is this insert bearing suitable for high-temperature use?

No, this variant is not designed for high-temperature applications.

SKF YEL 206-2RF/VL065 Y insert bearing cylindrical with eccentric ring for metric shaft, 30 x 62 mm

Supplier number: SKF YEL 206-2RF/VL065 | EAN 7316570385908

Recommended Retail Price €123.70

61.20 tax incl.

€50.58 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered as of 13/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support for constant rotation

Practical benefits

Quick and secure locking: You can easily clamp the insert bearing onto a 30 mm metric shaft using the eccentric locking collar.
Extended Skf inner ring: The ring extension on both sides provides a larger contact area, giving you superior stability and shaft support.
Smooth and durable operation: Robust bearing steel combined with effective sealing reduces noise and vibrations, ensuring you achieve a long service life.

In a nutshell

The right choise for

With the Skf yel 206-2RF/VL065 insert bearing, you achieve reliable shaft support for machinery and conveyors operating in a constant direction of rotation. Thanks to the eccentric locking collar, you quickly and securely clamp the bearing onto a 30 mm metric shaft without requiring prior shaft machining. The inner ring extended on both sides provides a larger contact surface for superior shaft stability. Built from durable bearing steel with a synthetic cage, it reduces vibration and noise to keep your equipment running smoothly over a long service life.

Product information FAQ

€61.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 48,4 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 62 mm

Product description

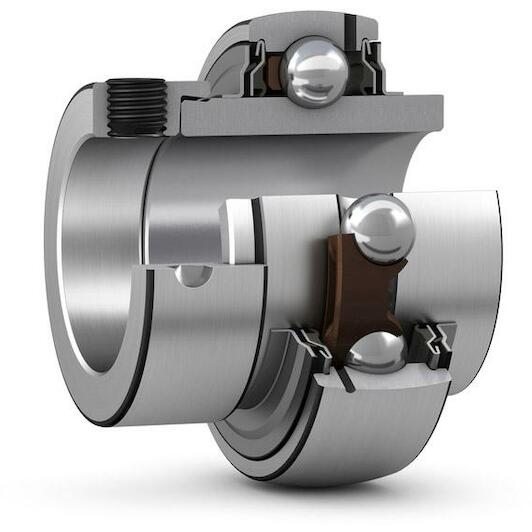

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has an inner ring extended on both sides, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 48,4 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 62 mm
Width, outer ring: 18
Basic static load rating: 11.2
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, multiple
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 3800
Outer ring type: Spherical
Width, total: 48.4
Width, inner ring: 36.5
Shaft diameter: 30
Bore diameter: 30
Basic dynamic load rating: 19.5
Coating: Zinc-coated inner ring bore and side faces
Outer diameter: 62
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190662
EAN 7316570385908
Supplier number SKF YEL 206-2RF/VL065

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing designed for?: This bearing is designed for a metric shaft with a diameter of 30 mm.
How is the bearing secured to the shaft?: You mount it easily onto the shaft using an eccentric locking collar.
What are the outer dimensions of this SKF bearing?: The bearing has an outside diameter of 62 mm and a total width of 48.4 mm.
Which rotation direction is this bearing suitable for?: Due to the eccentric locking collar, it is intended for applications with a constant direction of rotation.
Is this insert bearing suitable for high-temperature use?: No, this variant is not designed for high-temperature applications.
