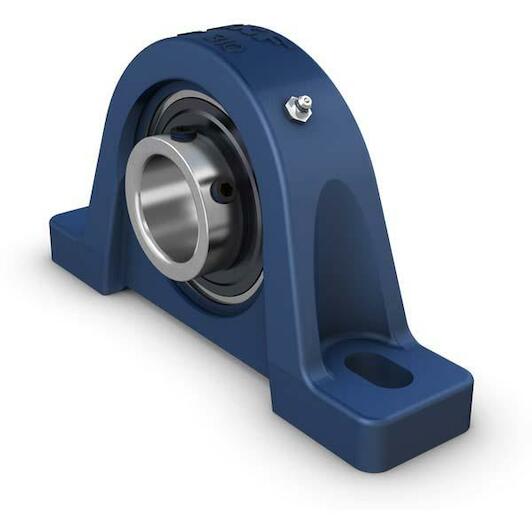

SKF UCP 218 upright ball bearing unit with widened inner ring and locking with set screws, cast iron, Japanese standards

SKF
Supplier number: SKF UCP 218 | EAN 7316579542654
Recommended Retail Price €648.43
320.95 tax incl.
€265.25 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Free shipping
  • Delivery by DHL
✆ Talk to a specialist


Product information
€320.95
tax incl.

Product information

Key features according to our expert

  • Shaft diameter: 90 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Designed for a constant and alternating rotation
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective

All Features

Shaft diameter
90 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, housing
Cast iron
Grease fitting
With
Centre height (pillow block)
101.6
Hexagonal key size for set screw
6.08
Note
Limiting speed with shaft tolerance h6
Basic static load rating
72
Housing type
Pillow block
Material, bearing
Bearing steel
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Rubber seating ring
Without
Lubricant
Grease
Number of bolt holes for fasteners
2
Application
For material handling applications
Centre distance between bolt holes
262
Bearing width, total
96
Basic dynamic load rating
95.6
Coating
Without
Housing overall width
88
Retaining feature, inner ring
Set screws
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
1600
Sealing, unit
Without
Attachment bolt diameter
22
Set screw
M12x1.5
  • Brand SKF
  • EAN 7316579542654
  • Supplier number SKF UCP 218
