What are the dimensions of the SKF NUTR 25 X track roller?

The track roller has an outer diameter of 52 mm, a bore diameter of 25 mm, and a total width of 25 mm.

What is the outer ring profile shape of this roller?

The X suffix indicates that this yoke-type track roller has a cylindrical (flat) outer ring running surface.

Can this SKF track roller be relubricated?

Yes, the inner ring features a lubrication hole to facilitate easy relubrication.

What type of rolling elements does this bearing use?

It features a double row full complement cylindrical roller set without a cage for high radial load capacity.

Is this track roller sealed?

Yes, it is equipped with integrated labyrinth seals on both sides and comes ready to mount.

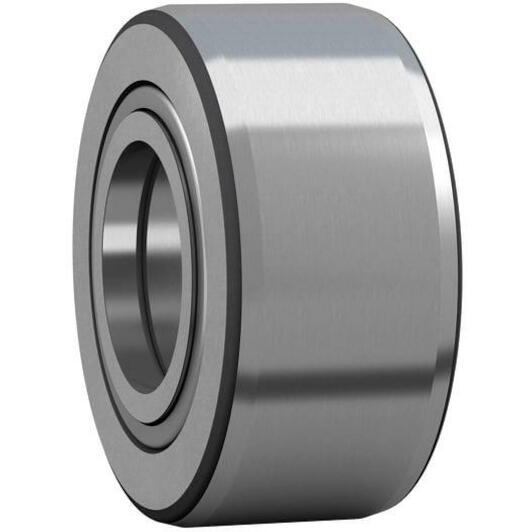

SKF NUTR 25 X support roller with inner ring and flange seal (Yoke type track roller) 52 x 25 x 25 mm

Supplier number: SKF NUTR 25 X | EAN 7316577721204

Recommended Retail Price €233.99

115.40 tax incl.

€95.37 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy load guidance with Skf NUTR 25 X

Practical benefits

High radial load capacity: The full complement cylindrical roller design ensures you handle extreme radial loads effortlessly in demanding industrial tracks.
Superior axial guidance: Built-in flange rings allow your roller to accommodate tilting forces and heavy axial guide loads with exceptional stability.
Simple and fast relubrication: Using the lubrication hole in the inner ring, you easily re-grease the unit to ensure a long operational lifespan.

In a nutshell

The right choise for

With the Skf nutr 25 X track roller, you ensure reliable and stable guidance across demanding industrial applications such as cam drives, conveyor systems, and linear guide setups. Thanks to the double row full complement cylindrical roller design, it effortlessly accommodates heavy radial loads and sudden shocks. Integrated flange rings keep the roller securely aligned against axial forces. In addition, the built-in sealing shields the internal components from dirt and moisture ingress, while the lubrication hole in the inner ring allows for quick relubrication, helping you extend machine service life and prevent downtime.

Product information FAQ

€115.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 25 mm
Outer diameter: 52 mm

Product description

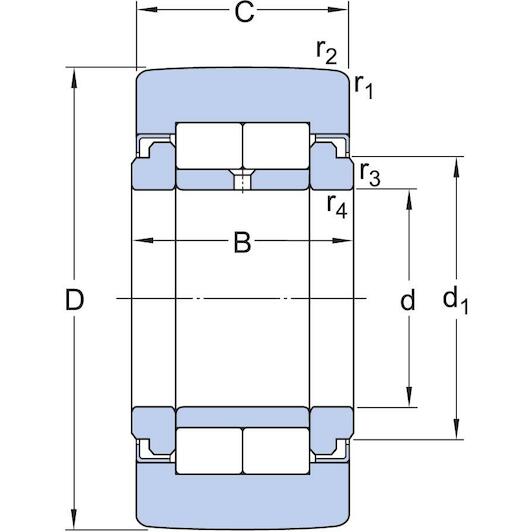

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with a cylindrical running surface. They are supplied sealed and ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication.

High radial load carrying capacity
Accommodate relatively heavy axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 25 mm
Outer diameter: 52 mm
Axial guidance of outer ring: Yes
Rolling elements: Cylindrical rollers
Functional outside diameter: 52
Material, bearing: Bearing steel
Cage: Without
Sealing type: Labyrinth
Width, outer ring: 24
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 36
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 25
Outer ring profile: Cylindrical
Limiting speed: 3200
Bore diameter: 25
Number of rows: 2
Basic dynamic load rating: 29.7
Coating: Without
Application: Support roller

Brand SKF
01210181
EAN 7316577721204
Supplier number SKF NUTR 25 X

Frequently asked questions about this product

Answered by specialists

What are the dimensions of the SKF NUTR 25 X track roller?: The track roller has an outer diameter of 52 mm, a bore diameter of 25 mm, and a total width of 25 mm.
What is the outer ring profile shape of this roller?: The X suffix indicates that this yoke-type track roller has a cylindrical (flat) outer ring running surface.
Can this SKF track roller be relubricated?: Yes, the inner ring features a lubrication hole to facilitate easy relubrication.
What type of rolling elements does this bearing use?: It features a double row full complement cylindrical roller set without a cage for high radial load capacity.
Is this track roller sealed?: Yes, it is equipped with integrated labyrinth seals on both sides and comes ready to mount.
