SKF

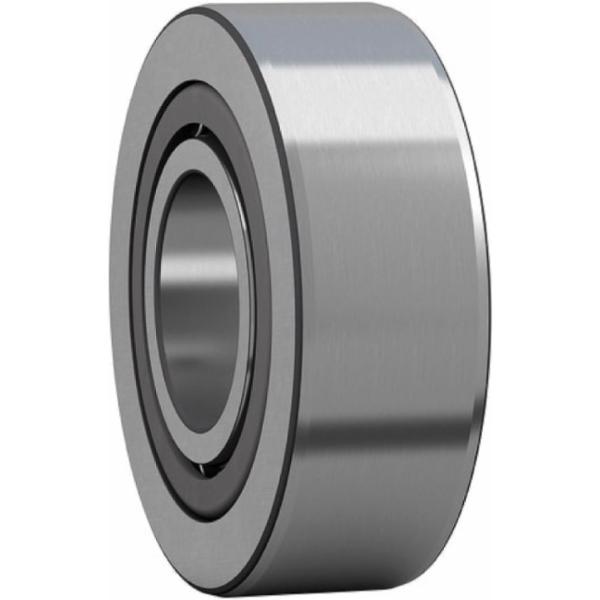

SKF STO 12 support roller with inner ring (Yoke-type idler) 32 x 12 x 12 mm

This article is not available

Product description:

  • Support roller without axial guide, with inner ring
Key features according to our expert
  • Inner diameter: 12 mm
  • Outer diameter: 32 mm
  • Width: 12 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570402711
  • Supplier number: SKF STO 12
Inner diameter
12 mm
Outer diameter
32 mm
Width
12 mm
Functional outside diameter
32 mm
Material, bearing
Bearing steel
Cage
With
Width, outer ring
11.8 mm
Lubricant
Grease
Relubrication feature
With
Basic static load rating
9.8 kN
Radial internal clearance
CN
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
No
Number of flanges, outer ring
0
Sealing
Without
Width, total
12 mm
Outer ring profile
Crowned
Limiting speed
5,600 r/min
Bore diameter
12 mm
Number of rows
1
Basic dynamic load rating
8.8 kN
Coating
Without
Rolling elements
Needle rollers
