SKF

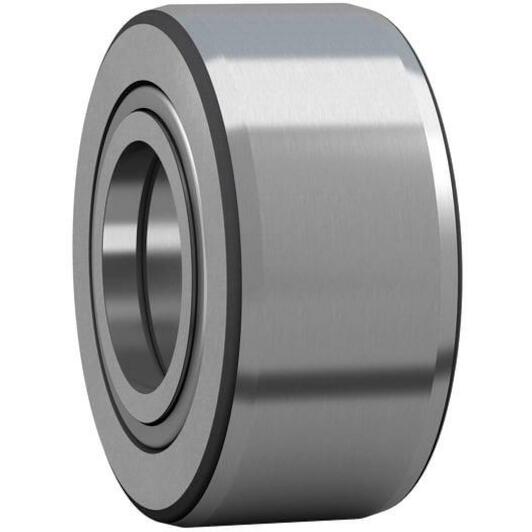

SKF PWTR 50110.2RS support roller with inner ring and flange seal (Yoke type track roller) 110 x 50 x 32 mm

Recommended Retail Price €673.75
330.95 tax incl.
€273.51 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication.

  • High radial load carrying capacity
  • Accommodate relatively heavy axial loads due to skew or tilting
  • Long service life
  • Easy to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 50 mm
  • Width: 32 mm
  • Outer diameter: 110 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571194981
  • Supplier number: SKF PWTR 50110.2RS
Inner diameter
50 mm
Width
32 mm
Outer diameter
110 mm
Axial guidance of outer ring
Yes
Rolling elements
Cylindrical rollers
Functional outside diameter
110
Material, bearing
Bearing steel
Cage
Without
Sealing type
Contact
Width, outer ring
30
Lubricant
Grease
Relubrication feature
With
Basic static load rating
78
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Number of flanges, outer ring
3
Sealing
Seal on both sides
Width, total
32
Outer ring profile
Crowned
Limiting speed
1600
Bore diameter
50
Number of rows
2
Basic dynamic load rating
57.2
Coating
Without
Application
Support roller
