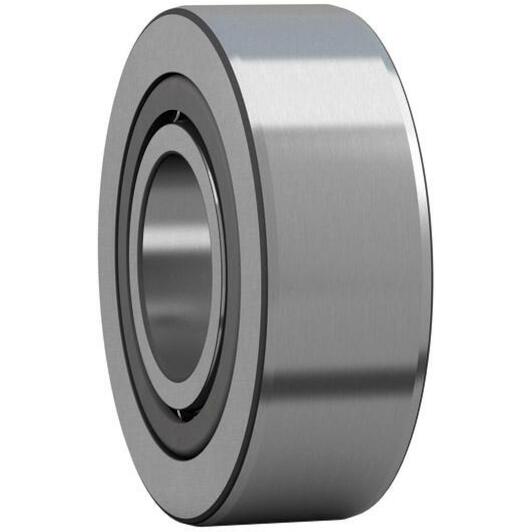

SKF STO 6 TN support roller with inner ring (Yoke-type idler) 19 x 6 x 10 mm

SKF
Supplier number: SKF STO 6 TN | EAN 7316570352092
Recommended Retail Price €66.08
32.40 tax incl.
€26.78 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/11/2026

  • Ordered before 20:00 - delivered as of 17/11/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€32.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 6 mm
  • Width: 10 mm
  • Outer diameter: 19 mm

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The outer ring, the inner ring and the needle roller and cage assembly can be mounted separately.

  • High radial load carrying capacity
  • Able to withstand shock loads
  • Long service life
  • Ready to mount
  • Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
6 mm
Width
10 mm
Outer diameter
19 mm
Axial guidance of outer ring
No
Rolling elements
Needle rollers
Functional outside diameter
19
Material, bearing
Bearing steel
Cage
With
Width, outer ring
9.8
Lubricant
Grease
Relubrication feature
With
Basic static load rating
4.5
Radial internal clearance
CN
Tolerance class
Other
Bearing part
Complete track roller
Width, total
10
Sealing
Without
Outer ring profile
Crowned
Limiting speed
7000
Bore diameter
6
Number of rows
1
Basic dynamic load rating
3.74
Coating
Without
Application
Support roller
  • Brand SKF
  • EAN 7316570352092
  • Supplier number SKF STO 6 TN
