SKF

SKF SIL 10 C Rod head with female thread, left-hand thread 10 mm, M 10

Recommended Retail Price €169.15
83.60 tax incl.
€69.09 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

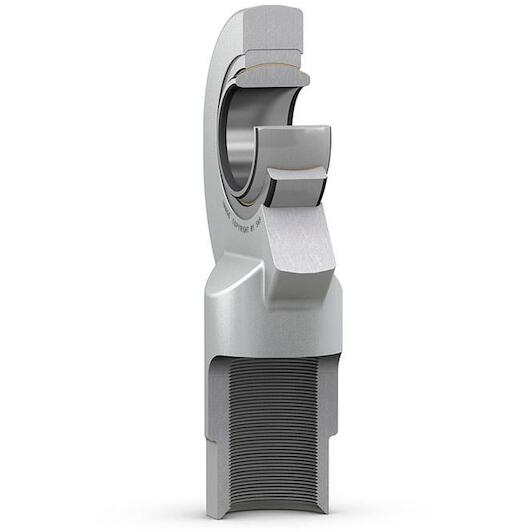

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 10 mm
  • Connection type: Inner thread
  • Thread type: Metric - Left
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Connection size: M10
Specifications / All features
  • Brand: SKF
  • EAN: 7316577104656
  • Supplier number: SKF SIL 10 C
Inner diameter
10 mm
Connection type
Inner thread
Thread type
Metric - Left
Seal (bearing)
Without seal
Maintenance free
Yes
Connection size
M10
Bore diameter, bearing inner ring
10
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE sintered bronze
Housing length, total
60
Maintenance
Maintenance-free
Thread designation
M 10
Material, outer ring
Deep-drawing steel
Outside diameter, housing eye
30
Sealing
Without
Basic static load rating
19
Material, inner ring
Bearing steel
Width, bearing inner ring
9
Width, housing eye
7.5
Basic dynamic load rating
8.65
Centre height, housing (from end of shank)
43
