SKF SIL 6 C rod head with female thread, left-hand thread, M 6

SKF
Supplier number: SKF SIL 6 C | EAN 7316577104403
Recommended Retail Price €172.07
85.20 tax incl.
€70.41 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€85.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 6 mm
  • Connection type: Internal thread
  • Thread type: Metric - Left
  • Sealing (bearing): Without seals
  • Maintenance free: Yes
  • Connection size: M6

Product description

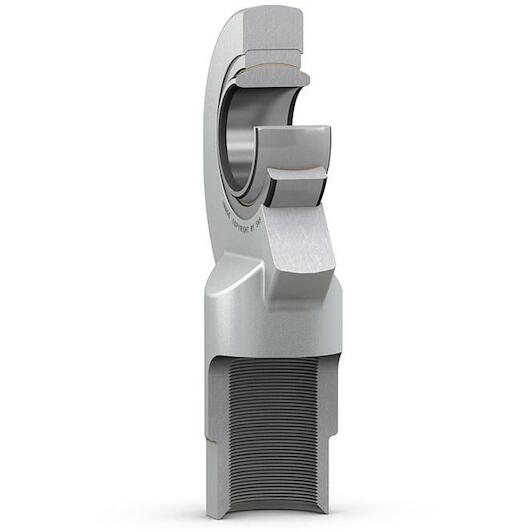

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
6 mm
Connection type
Internal thread
Thread type
Metric - Left
Sealing (bearing)
Without seals
Maintenance free
Yes
Connection size
M6
Bore diameter, bearing inner ring
6
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE sintered bronze
Housing length, total
43
Maintenance
Maintenance-free
Thread designation
M 6
Material, outer ring
Deep-drawing steel
Outside diameter, housing eye
22
Sealing
Without
Basic static load rating
8.15
Material, inner ring
Bearing steel
Width, bearing inner ring
6
Width, housing eye
4.5
Basic dynamic load rating
3.6
Centre height, housing (from end of shank)
30
  • Brand SKF
  • EAN 7316577104403
  • Supplier number SKF SIL 6 C
