SKF

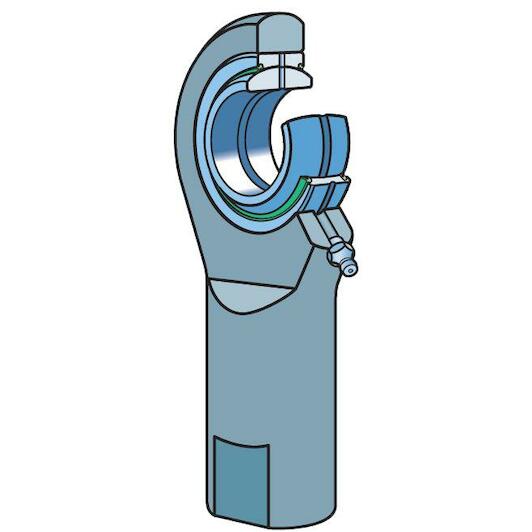

SKF SI 20 ES-2RS Rod head with female thread 20 mm, M 20x1.5

Recommended Retail Price €242.87
120.20 tax incl.
€99.34 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread. Some sizes have different fitting dimensions (SIA series).

  • Long service life
  • Minimal maintenance
  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 20 mm
  • Connection type: Inner thread
  • Thread type: Metric fine
  • Seal (bearing): Double-sided sealed
  • Maintenance free: Nein
  • Connection size: M20 x 1,5

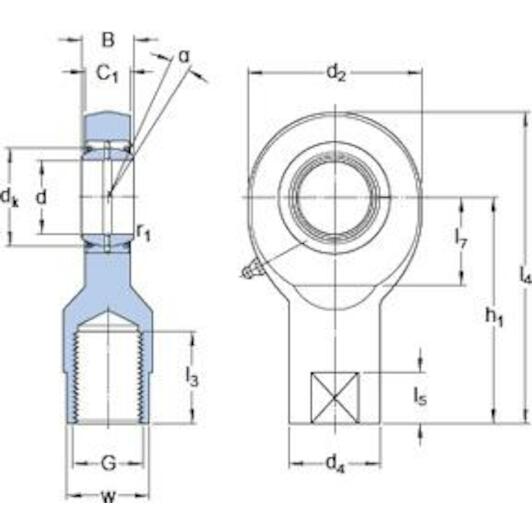

Specifications / All features
  • Brand: SKF
  • EAN: 7316577002945
  • Supplier number: SKF SI 20 ES-2RS
Inner diameter
20 mm
Connection type
Inner thread
Thread type
Metric fine
Seal (bearing)
Double-sided sealed
Maintenance free
Nein
Connection size
M20 x 1,5
Bore diameter, bearing inner ring
20
Attachment feature, rod end shank
Right-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
106
Maintenance
Relubrication required
Thread designation
M 20x1.5
Material, outer ring
Bearing steel
Sealing type
Double-lip
Outside diameter, housing eye
54
Width, bearing inner ring
16
Basic static load rating
57
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Width, housing eye
13.5
Basic dynamic load rating
30
Centre height, housing (from end of shank)
77
