SKF SAL 20 ES Rod head with male thread, left-hand thread 20 mm, M 20x1.5

SKF
Supplier number: SKF SAL 20 ES | EAN 7316577003461
Recommended Retail Price €202.40
100.20 tax incl.
€82.81 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€100.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 20 mm
  • Connection type: External thread
  • Thread type: Metric fine - Left
  • Sealing (bearing): Without seals
  • Maintenance free: Nein
  • Connection size: M20 x 1,5

Product description

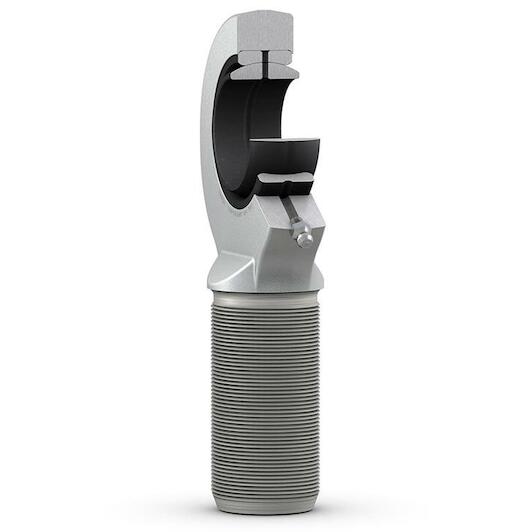

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread.

  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount
  • Easy to relubricate

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
20 mm
Connection type
External thread
Thread type
Metric fine - Left
Sealing (bearing)
Without seals
Maintenance free
Nein
Connection size
M20 x 1,5
Bore diameter, bearing inner ring
20
Attachment feature, rod end shank
Left-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
107
Maintenance
Relubrication required
Thread designation
M 20x1.5
Material, outer ring
Bearing steel
Outside diameter, housing eye
54
Sealing
Without
Basic static load rating
42.5
Material, inner ring
Bearing steel
Width, bearing inner ring
16
Width, housing eye
13.5
Basic dynamic load rating
30
Centre height, housing (from end of shank)
78
  • Brand SKF
  • EAN 7316577003461
  • Supplier number SKF SAL 20 ES
