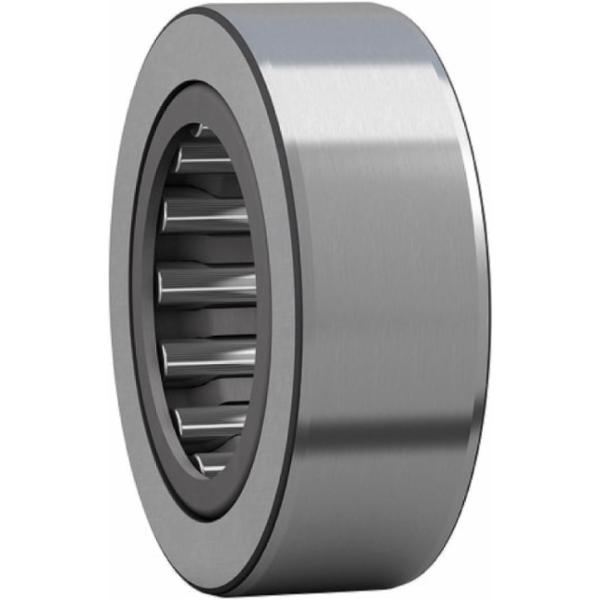

SKF RSTO 10 support roller (Yoke-type idler) 30 x 14 x 11.8 mm

SKF
Supplier number: SKF RSTO 10 | EAN 7316570459456
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 14 mm
  • Outer diameter: 30 mm
  • Width: 11,8 mm

Product description:

  • Support roller without axial guide

All Features

Inner diameter
14 mm
Outer diameter
30 mm
Width
11,8 mm
Functional outside diameter
30 mm
Material, bearing
Bearing steel
Cage
With
Width, outer ring
11.8 mm
Lubricant
Grease
Relubrication feature
Without
Basic static load rating
8.8 kN
Radial internal clearance
Not applicable
Tolerance class
Other
Bearing part
Track roller without inner ring
Axial guidance of outer ring
No
Number of flanges, outer ring
0
Sealing
Without
Width, total
11.8 mm
Outer ring profile
Crowned
Limiting speed
6,000 r/min
Bore diameter
14 mm
Number of rows
1
Basic dynamic load rating
8.25 kN
Coating
Without
Rolling elements
Needle rollers
  • Brand SKF
  • EAN 7316570459456
  • Supplier number SKF RSTO 10
