SKF

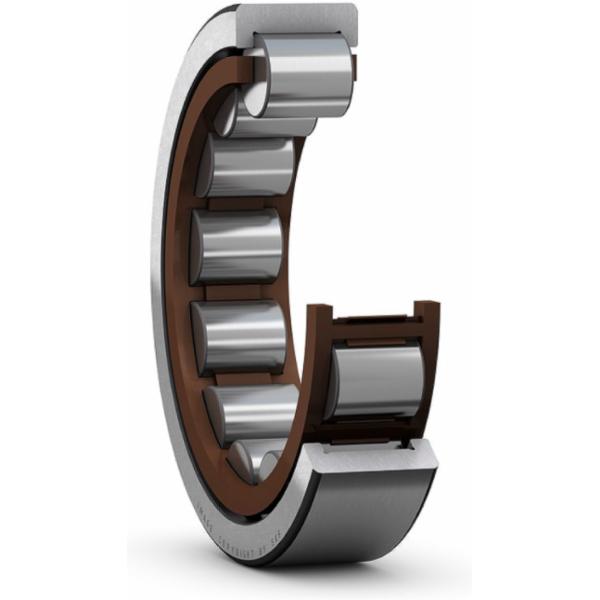

SKF RNU 308 ECP single-row cylindrical roller bearing 52 x 90 x 23 mm

This article is not available

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
  • Inner diameter: 52 mm
  • Width: 23 mm
  • Number of rows: 1
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577722713
  • Supplier number: SKF RNU 308 ECP
Inner diameter
52 mm
Width
23 mm
Number of rows
1
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
90 mm
Basic static load rating
78 kN
Bearing part
Bearing without inner ring
Tolerance class
Normal
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
8,000 r/min
Skf performance class
SKF Explorer
Sealing
Without
Cage
Non-metallic
Locating feature, bearing outer ring
None
Number of flanges, outer ring
2
Limiting speed
9,500 r/min
Bore diameter
52 mm
Basic dynamic load rating
93 kN
Coating
Without
Outside diameter
90 mm
