SKF

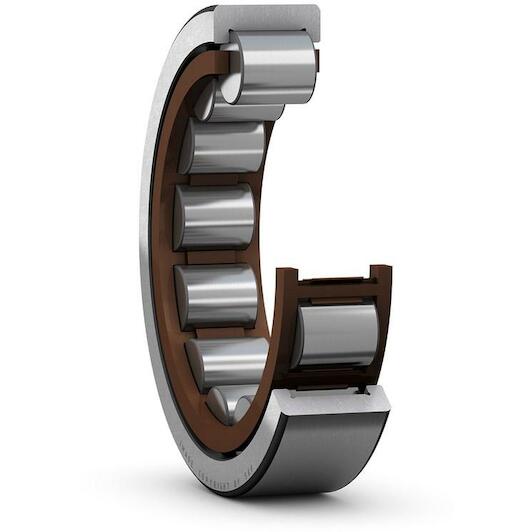

SKF RNU 204 ECP single-row cylindrical roller bearing 26.5 x 47 x 14 mm

Recommended Retail Price €85.47
42.20 tax incl.
€34.88 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.

  • High radial load carrying capacity
  • Enable a stronger, stiffer shaft
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 26,5 mm
  • Width: 14 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570607130
  • Supplier number: SKF RNU 204 ECP
Inner diameter
26,5 mm
Width
14 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
47 mm
Basic static load rating
22
Bearing part
Bearing without inner ring
Tolerance class
Normal
Loose flange
None
Skf performance class
SKF Explorer
Relubrication feature
Without
Reference speed
17000
Sealing
Without
Lubricant
None
Locating feature, bearing outer ring
None
Basic dynamic load rating
28.5
Number of flanges, outer ring
2
Limiting speed
19000
Coating
Without
Outside diameter
47
Diameter under rollers
26.5
