Is the insert bearing included with this housing?

No, this is only the two-piece pressed steel housing. You pair it with a compatible SKF insert bearing.

What spherical seat diameter does the SKF P 52 have?

This housing features a 52 mm spherical seat diameter to accommodate matching insert bearings.

What material is this housing made from?

It is made of zinc-coated pressed steel, providing a lightweight build and corrosion protection.

Can this housing be relubricated?

No, this pressed steel model has no grease fitting or provision for relubrication.

What is the center distance between the mounting holes?

The center distance between the two attachment bolt holes is 86 mm.

SKF P 52 standing bearing housing steel plate 52 mm

Supplier number: SKF P 52 | EAN 7316576667336

8.86 tax incl.

€7.32 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable mounting with the Skf pillow block housing

Practical benefits

Simple and fast mounting: Thanks to the two-piece pressed steel design, you install the insert bearing and shaft with ease.
Effective protection against corrosion: The zinc-coated finish on cold-rolled steel protects your housing against rust and environmental wear.
Lightweight and compact design: You minimize overall assembly weight while providing steady support for light-load applications.

In a nutshell

The right choise for

With the Skf p 52 pillow block housing, you mount insert bearings quickly and reliably in light mechanical assemblies. The two-piece cold-rolled, zinc-coated pressed steel construction provides dependable corrosion protection while keeping overall installation weight to a minimum. Featuring a 52 mm spherical seat diameter and an 86 mm mounting hole center distance, you easily secure your Y-bearing onto flat surfaces across conveyor systems, ventilation units, or agricultural machinery. Supplied without the insert bearing and requiring no relubrication, this housing gives you the flexibility to pair it with the exact Skf insert bearing suited to your setup.

Product information FAQ

€8.86

In stock - tax incl.

Key features according to our expert

Seat diameter: 52 mm
Material (bearing housing): Sheet steel

Product description

Pillow (plummer) block pressed steel housings for insert bearings are lightweight and made from cold-rolled steel, and are zinc-coated for corrosion protection. The housings are cost-effective and designed for simple applications with light loads. The two-part housing, which has no provision for relubrication, can be ordered separately from the insert bearing, making a large number of combinations possible.

Lightweight
Cost-effective
Flexible bearing and housing combinations
Simple to mount
Protection against corrosion

Documents

⤓ Technical data sheet PDF

All Features

Seat diameter: 52 mm
Material (bearing housing): Sheet steel
Grease fitting: Without
Centre height (pillow block): 28.4

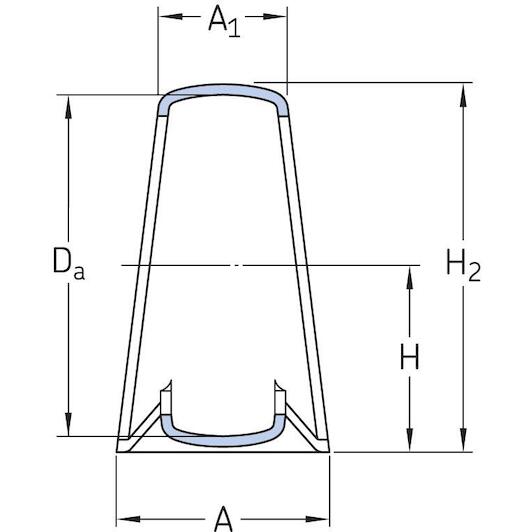

Spherical seating diameter: 52
Housing type: Pillow block
Number of bolt holes for fasteners: 2

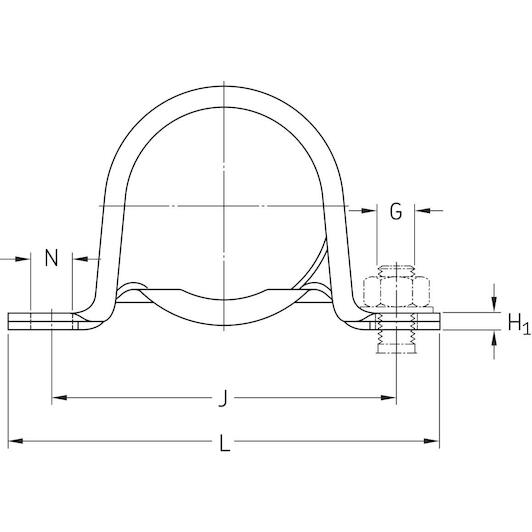

Centre distance between bolt holes: 86
Fastening bolt hole type: Plain
Relubrication hole: Without
Housing overall width: 32
Coating: Zinc-coated
Material, housing: Pressed steel

Brand SKF
01190853
EAN 7316576667336
Supplier number SKF P 52

Frequently asked questions about this product

Answered by specialists

Is the insert bearing included with this housing?: No, this is only the two-piece pressed steel housing. You pair it with a compatible SKF insert bearing.
What spherical seat diameter does the SKF P 52 have?: This housing features a 52 mm spherical seat diameter to accommodate matching insert bearings.
What material is this housing made from?: It is made of zinc-coated pressed steel, providing a lightweight build and corrosion protection.
Can this housing be relubricated?: No, this pressed steel model has no grease fitting or provision for relubrication.
What is the center distance between the mounting holes?: The center distance between the two attachment bolt holes is 86 mm.
