What is the purpose of this bearing housing?

It serves as a pillow block housing designed to accommodate a compatible insert bearing.

What is the spherical seating diameter of the SKF SY 506 M?

The seating diameter for the insert bearing is 62 mm.

What material is the housing made of?

The housing is manufactured from sturdy cast iron in accordance with ISO standards.

Is the ball bearing insert included?

No, this product includes the standalone housing only.

How many mounting holes does this housing feature?

The base features 2 bolt holes for secure mounting on a support surface.

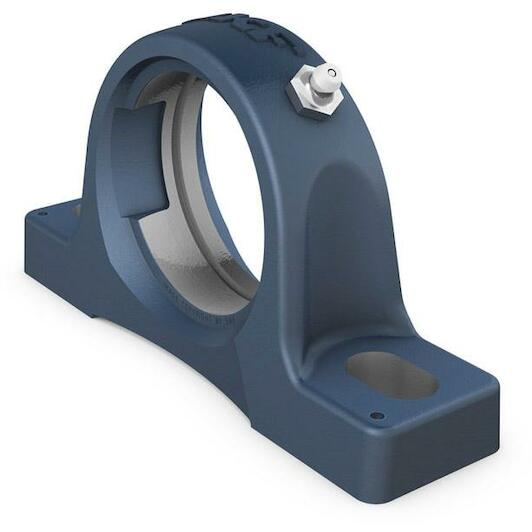

SKF SY 506 M standing bearing housing cast iron 62 mm

Supplier number: SKF SY 506 M | EAN 7316577733092

Recommended Retail Price €48.82

23.95 tax incl.

€19.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable support for rotating shafts

Practical benefits

Rigid cast iron body: The sturdy cast iron housing delivers excellent rigidity and withstands heavy loads across diverse industrial applications.
Direct surface mounting convenience: The pillow block base allows you to bolt the Skf SY 506 M securely onto any flat machinery support surface.
Standardized insert bearing fit: Engineered to ISO standards, the 62 mm spherical seating diameter ensures accurate alignment for compatible insert bearings.

In a nutshell

The right choise for

With the Skf sy 506 M pillow block housing, you can mount rotating shafts securely and reliably on industrial machinery, conveyor systems, and agricultural equipment. Its sturdy cast iron body delivers exceptional rigidity, absorbing heavy mechanical loads and vibrations in demanding environments. Engineered to iso standards, the 62 mm spherical seating diameter ensures an accurate fit for compatible insert bearings to accommodate initial misalignment. The two bolt holes in the base allow for direct, rigid mounting onto any flat support surface. This enables you to replace worn housings independently and keep your drive systems running at their best.

Product information FAQ

€23.95

In stock - tax incl.

Key features according to our expert

Seat diameter: 62 mm
Material (bearing housing): Cast iron

Product description

Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.

Accommodate heavy loads in different directions
High degree of stiffness
Narrow design

Documents

⤓ Technical data sheet PDF

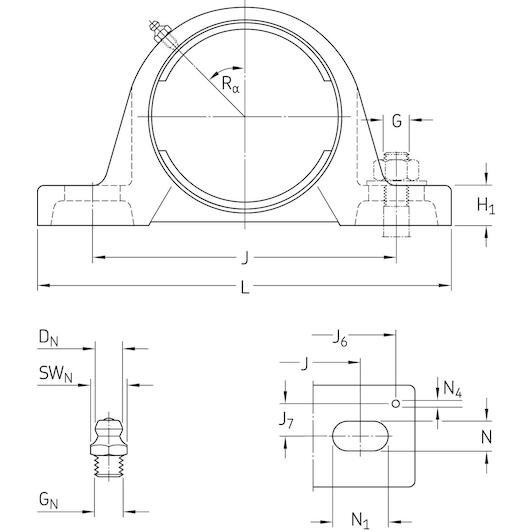

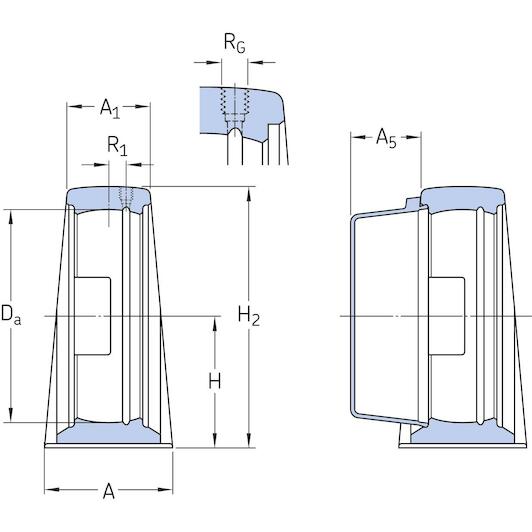

All Features

Seat diameter: 62 mm
Material (bearing housing): Cast iron
Grease fitting: With
Centre height (pillow block): 42.9
Spherical seating diameter: 62
Housing type: Pillow block
Number of bolt holes for fasteners: 2
Centre distance between bolt holes: 117.5
Fastening bolt hole type: Plain
Relubrication hole: With
Housing overall width: 40
Coating: Without
Material, housing: Cast iron

Brand SKF
01190870
EAN 7316577733092
Supplier number SKF SY 506 M

Frequently asked questions about this product

Answered by specialists

What is the purpose of this bearing housing?: It serves as a pillow block housing designed to accommodate a compatible insert bearing.
What is the spherical seating diameter of the SKF SY 506 M?: The seating diameter for the insert bearing is 62 mm.
What material is the housing made of?: The housing is manufactured from sturdy cast iron in accordance with ISO standards.
Is the ball bearing insert included?: No, this product includes the standalone housing only.
How many mounting holes does this housing feature?: The base features 2 bolt holes for secure mounting on a support surface.
