SKF

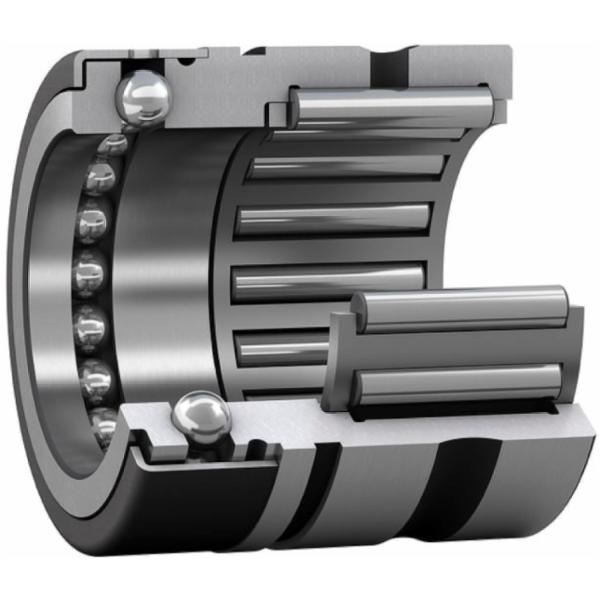

SKF NX 20 combined needle roller/ball thrust bearing single acting 20x30x28 mm

This article is not available

Product description:

  • Combined needle roller bearings, cylindrical roller thrust bearings
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 28 mm
  • Outer diameter: 30 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577723017
  • Supplier number: SKF NX 20
Inner diameter
20 mm
Width
28 mm
Outer diameter
30 mm
Axial load capability
Single-direction
Thrust part
Without cage
Reference speed
6,300 r/min
Tolerance class
Other
Bearing part
Radial part without inner ring
Rolling element (thrust part)
Balls
Lubricant (thrust part)
None
Special feature
Thrust part with stamped steel cover with lubrication holes
Limiting speed
7,500 r/min
Rolling bearing type
Needle roller / full complement thrust ball bearing
Bore diameter
20 mm
Radial part
With cage
Coating
Without
Outside diameter
30 mm
Material, bearing
Bearing steel
