SKF NKX 35 Z combined needle roller/ball thrust bearing with cage, single-sided acting 35x47x30 mm

Supplier number: SKF NKX 35 Z | EAN 7316577014757

Recommended Retail Price €300.24

148.20 tax incl.

€122.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

Combined radial axial support: You support both radial forces and single-direction thrust loads within a single, efficient bearing assembly.
Compact low cross section: Thanks to its minimal radial height, you install this bearing easily in machinery with restricted mounting space.
Integrated protective cover cap: The durable stamped steel cover retains lubricating grease effectively while shielding the thrust ball mechanism from contaminants.

In a nutshell

The right choise for

With the Skf nkx 35 z combined needle roller and thrust ball bearing, you accommodate heavy radial forces and single-direction axial loads within one compact assembly. Measuring 35X47X30 mm, this non-separable bearing is designed for gearboxes, drive systems, and 35 mm shafts where radial mounting space is restricted. Its low cross-sectional profile saves valuable space without compromising support. The integrated steel cover cap forms an effective gap-type seal over the thrust mechanism, keeping grease inside the bearing while shielding vital internal components from external contaminants.

Product information FAQ

€148.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Outer diameter: 47 mm
Width: 30 mm

Product description

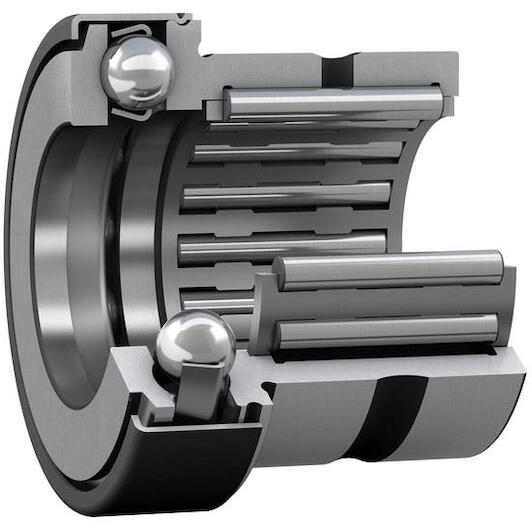

These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.

Accommodate radial and axial loads in one direction
High load carrying capacity
Relatively high-speed capability
Low cross section
Non-separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Outer diameter: 47 mm
Width: 30 mm
Material, bearing: Bearing steel
Thrust part: With cage
Reference speed: 5600
Tolerance class: Other
Bearing part: Radial part without inner ring
Rolling element (thrust part): Balls
Lubricant (thrust part): Grease
Special feature: Thrust part with stamped steel cover without lubrication holes
Limiting speed: 4500
Bore diameter: 35
Axial load capability: Single-direction
Radial part: With cage
Coating: Without
Outside diameter: 47
Rolling bearing type: Needle roller / thrust ball bearing

Brand SKF
01290773
EAN 7316577014757
Supplier number SKF NKX 35 Z

Frequently asked questions about this product

Answered by specialists

What types of loads can this bearing accommodate?: The SKF NKX 35 Z combines a radial needle roller bearing and a thrust ball bearing to support radial and single-direction axial loads.
What are the exact dimensions of the SKF NKX 35 Z?: It features an inside diameter of 35 mm, an outside diameter of 47 mm, and an overall width of 30 mm.
What is the purpose of the end cover?: The cover forms a gap-type seal over the thrust part to retain grease inside the bearing.
Is this combined bearing separable?: No, the SKF NKX 35 Z has a non-separable design for a compact and rigid assembly.
