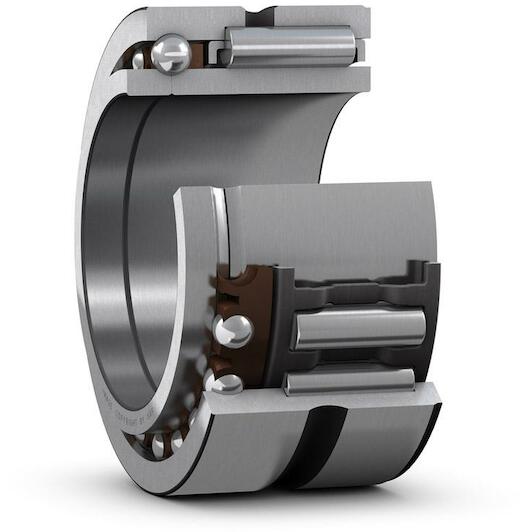

SKF NKIB 5903 needle roller/angle contact ball bearing 17 x 30 x 20 mm

Supplier number: SKF NKIB 5903 | EAN 7316570809282
Recommended Retail Price €145.91
71.95 tax incl.
€59.46 excl. VAT (incl. all environmental contributions)
On order: delivered from 06/10/2026

  • Ordered before 20:00 - delivered as of 06/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL


€71.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 17 mm
  • Width: 20 mm
  • Outer diameter: 30 mm

Product description

These bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in both directions. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.

  • Accommodate both radial and axial loads
  • High load carrying capacity
  • High-speed capability
  • Low cross section
  • Separable design

Documents

All Features

Inner diameter
17 mm
Width
20 mm
Outer diameter
30 mm
Limiting speed
20000
Material, bearing
Bearing steel
Thrust part
With cage
Width, outer ring
18
Reference speed
18000
Radial internal clearance
CN
Tolerance class
Other
Bearing part
Complete bearing
Rolling element (thrust part)
Balls
Lubricant (thrust part)
None
Bore diameter
17
Axial load capability
Double-direction
Radial part
With cage
Coating
Without
Outside diameter
30
Rolling bearing type
Needle roller / angular contact ball bearing
  • Brand SKF
  • EAN 7316570809282
  • Supplier number SKF NKIB 5903
