Which loads can this bearing accommodate?

It combines a needle roller bearing and a thrust ball bearing to support high radial loads and single-direction axial loads.

What are the exact dimensions of this NKX 70 Z bearing?

This bearing has an inside diameter of 70 mm, an outside diameter of 85 mm, and an overall width of 40 mm.

What is the purpose of the cover indicated by suffix Z?

The cover caps the thrust section and creates a gap-type seal to retain lubricating grease inside the bearing.

Is this combined bearing separable for mounting?

No, this is a non-separable bearing unit designed for compact installation where radial space is limited.

Does this bearing support axial forces in both directions?

No, the integrated thrust ball bearing is single-acting and accommodates axial loads in one direction only.

SKF NKX 70 Z combined needle roller/ball thrust bearing with cage, single-sided acting 70x85x40 mm

Supplier number: SKF NKX 70 Z | EAN 7316577713582

Recommended Retail Price €728.01

357.60 tax incl.

€295.54 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Robust performance by Skf

Practical benefits

Combined radial axial support: You accommodate both radial loads and single-direction axial thrust efficiently within a single compact bearing assembly.
Compact space saving profile: The low cross-sectional height allows you to fit reliable bearing arrangements into extremely restricted installation spaces.
Protected and greased design: The integrated steel cover retains lubricating grease and shields the thrust ball bearing section from external contamination.

In a nutshell

The right choise for

With the Skf nkx 70 z combined bearing, you support heavy radial forces and single-direction axial loads simultaneously within one compact unit. Measuring 70X85X40 mm, this non-separable bearing integrates a needle roller bearing and a thrust ball bearing, eliminating the need to install two separate bearings. Its low cross-sectional height saves valuable installation space in industrial gearboxes, drive systems, pumps, and machine tools. The integrated steel cover creates an effective seal that keeps lubricating grease inside while protecting the thrust section from external contamination.

Product information FAQ

€357.60

tax incl.

Key features according to our expert

Inner diameter: 70 mm
Outer diameter: 85 mm
Width: 40 mm

Product description

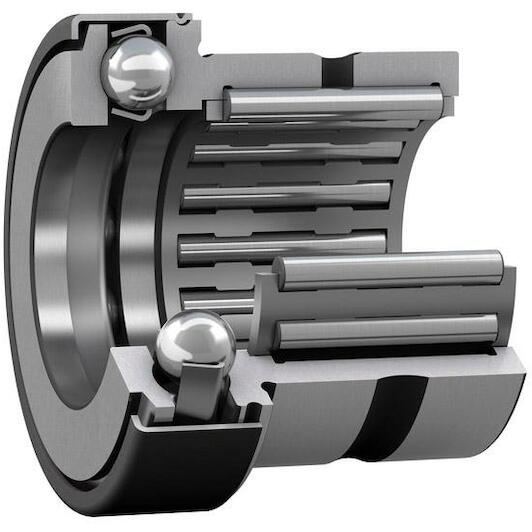

These bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.

Accommodate radial and axial loads in one direction
High load carrying capacity
Relatively high-speed capability
Low cross section
Non-separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 70 mm
Outer diameter: 85 mm
Width: 40 mm
Material, bearing: Bearing steel
Thrust part: With cage
Reference speed: 3400
Tolerance class: Other
Bearing part: Radial part without inner ring
Rolling element (thrust part): Balls
Lubricant (thrust part): Grease
Special feature: Thrust part with stamped steel cover without lubrication holes
Limiting speed: 2700
Bore diameter: 70
Axial load capability: Single-direction
Radial part: With cage
Coating: Without
Outer diameter: 85
Rolling bearing type: Needle roller / thrust ball bearing

Brand SKF
01290817
EAN 7316577713582
Supplier number SKF NKX 70 Z

Frequently asked questions about this product

Answered by specialists

Which loads can this bearing accommodate?: It combines a needle roller bearing and a thrust ball bearing to support high radial loads and single-direction axial loads.
What are the exact dimensions of this NKX 70 Z bearing?: This bearing has an inside diameter of 70 mm, an outside diameter of 85 mm, and an overall width of 40 mm.
What is the purpose of the cover indicated by suffix Z?: The cover caps the thrust section and creates a gap-type seal to retain lubricating grease inside the bearing.
Is this combined bearing separable for mounting?: No, this is a non-separable bearing unit designed for compact installation where radial space is limited.
Does this bearing support axial forces in both directions?: No, the integrated thrust ball bearing is single-acting and accommodates axial loads in one direction only.
