SKF

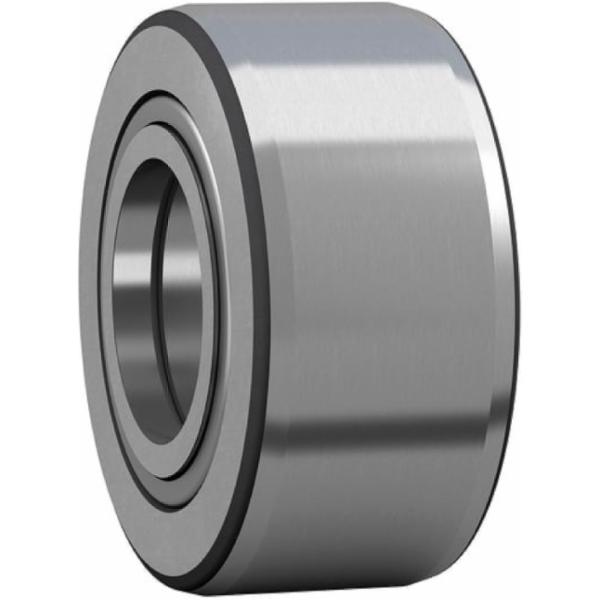

SKF NUTR 45 X support roller with inner ring and flange seal (Yoke-type idler) 85 x 45 x 32 mm

This article is not available

Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 32 mm
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570229769
  • Supplier number: SKF NUTR 45 X
Inner diameter
45 mm
Width
32 mm
Outer diameter
85 mm
Axial guidance of outer ring
Yes
Functional outside diameter
85 mm
Material, bearing
Bearing steel
Cage
Without
Sealing type
Labyrinth
Width, outer ring
30 mm
Lubricant
Grease
Relubrication feature
With
Basic static load rating
75 kN
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
32 mm
Outer ring profile
Cylindrical
Limiting speed
1,700 r/min
Bore diameter
45 mm
Number of rows
2
Basic dynamic load rating
58.3 kN
Coating
Without
Rolling elements
Cylindrical rollers
