What are the dimensions of this SKF cylindrical roller bearing?

The bearing has a 40 mm bore diameter, a 90 mm outside diameter, and a width of 33 mm.

What does the NUP design indicate for this bearing?

The NUP design features two integral flanges on the outer ring and one integral flange with a loose flange ring on the inner ring to locate shafts axially in both directions.

What material is used for the cage?

The cage of this ECP variant is made of reinforced polyamide (polymer).

What radial internal clearance does this bearing have?

This bearing has standard CN (normal) radial internal clearance.

Is this cylindrical roller bearing sealed?

No, this is an open bearing without built-in seals.

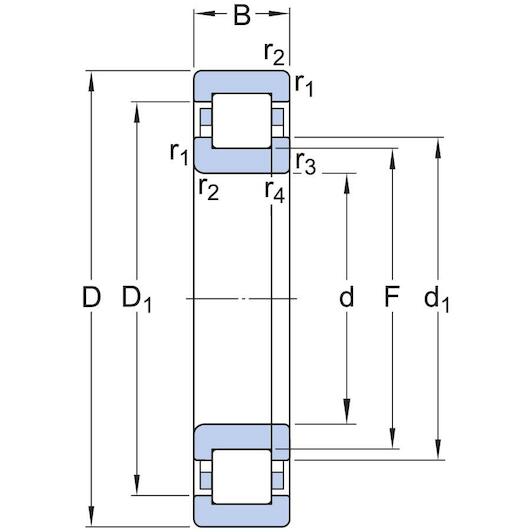

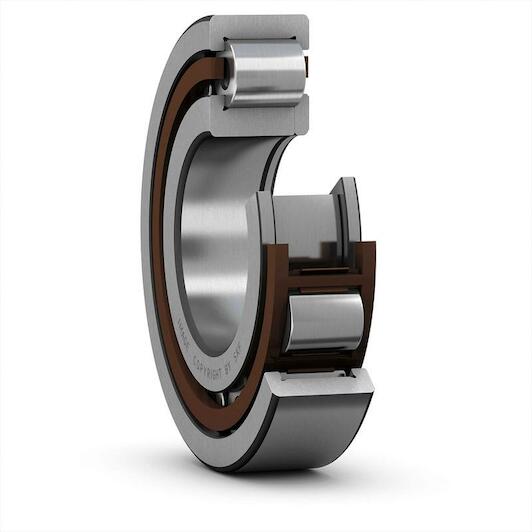

SKF NUP 2308 ECP single-row cylindrical roller bearing 40 x 90 x 33 mm

Supplier number: SKF NUP 2308 ECP | EAN 7316577028549

Recommended Retail Price €372.47

184.40 tax incl.

€152.40 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

High radial load capacity: You manage heavy radial forces smoothly thanks to the robust single-row cylindrical roller design.
Double direction axial location: The NUP design accurately locates the shaft in both axial directions to ensure stable and reliable rotation.
Easy separable installation: The separable configuration lets you mount, dismount, and inspect individual bearing components quickly and effortlessly.

In a nutshell

The right choise for

With the Skf nup 2308 ecp single row cylindrical roller bearing, you gain exceptional stability and high radial load carrying capacity for demanding industrial machinery, gearboxes, pumps, and electric motors. Its nup design handles heavy radial forces while providing double-direction axial location to effectively prevent axial shaft drift during operation. The optimized polyamide cage minimizes operational friction and reduces running noise. Featuring a separable construction, a cylindrical bore of 40 x 90 x 33 mm, and standard cn radial internal clearance, this open bearing ensures quick, accurate mounting and straightforward maintenance.

Product information FAQ

€184.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 33 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 90 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 33 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 90 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: Inner ring loose flange
Basic static load rating: 120
Cage: Non-metallic
Reference speed: 8000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 9500
Bore diameter: 40
Basic dynamic load rating: 129
Coating: Without
Outer diameter: 90
Axial displacement capability: None

Brand SKF
01070445
EAN 7316577028549
Supplier number SKF NUP 2308 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cylindrical roller bearing?: The bearing has a 40 mm bore diameter, a 90 mm outside diameter, and a width of 33 mm.
What does the NUP design indicate for this bearing?: The NUP design features two integral flanges on the outer ring and one integral flange with a loose flange ring on the inner ring to locate shafts axially in both directions.
What material is used for the cage?: The cage of this ECP variant is made of reinforced polyamide (polymer).
What radial internal clearance does this bearing have?: This bearing has standard CN (normal) radial internal clearance.
Is this cylindrical roller bearing sealed?: No, this is an open bearing without built-in seals.
