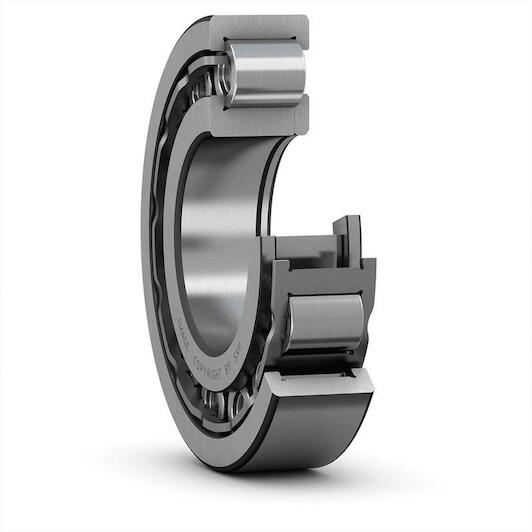

SKF NUP 224 ECJ single-row cylindrical roller bearing 120 x 215 x 40 mm

SKF
Supplier number: SKF NUP 224 ECJ | EAN 7316577042866
Recommended Retail Price €2,491.84
1,233.60 tax incl.
€1,019.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/10/2026

  • Ordered before 20:00 - delivered as of 26/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€1,233.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 120 mm
  • Width: 40 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 215 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in both directions
  • Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
120 mm
Width
40 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
215 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
Inner ring loose flange
Basic static load rating
430
Cage
Sheet metal
Reference speed
3400
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
3600
Bore diameter
120
Basic dynamic load rating
390
Coating
Without
Outer diameter
215
Axial displacement capability
None
  • Brand SKF
  • EAN 7316577042866
  • Supplier number SKF NUP 224 ECJ
