SKF

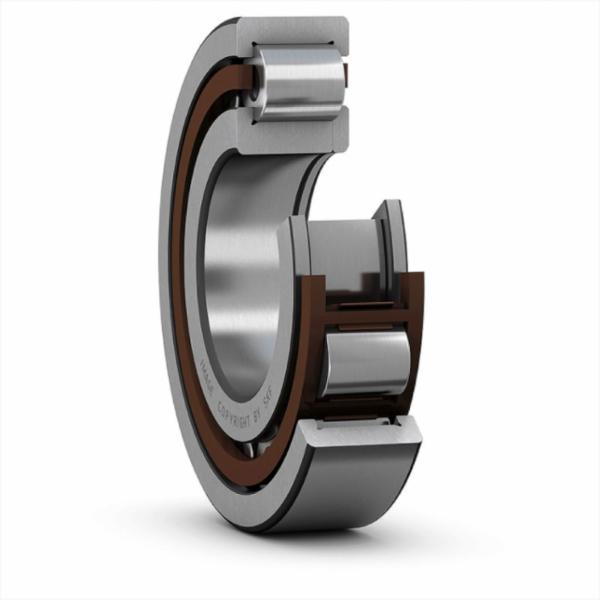

SKF NUP 213 ECP/C3 Single-row cylindrical roller bearing 65 x 120 x 23 mm

This article is not available

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 23 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 120 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570860221
  • Supplier number: SKF NUP 213 ECP/C3
Inner diameter
65 mm
Width
23 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
120 mm
Relubrication feature
Without
Radial internal clearance
C3
Loose flange
Inner ring loose flange
Basic static load rating
118 kN
Number of flanges, inner ring
1
Reference speed
6,300 r/min
Skf performance class
SKF Explorer
Lubricant
None
Cage
Non-metallic
Bearing part
Complete bearing
Tolerance class
Normal
Bore diameter
65 mm
Locating feature, bearing outer ring
None
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
6,700 r/min
Basic dynamic load rating
122 kN
Coating
Without
Outside diameter
120 mm
Axial displacement capability
None
