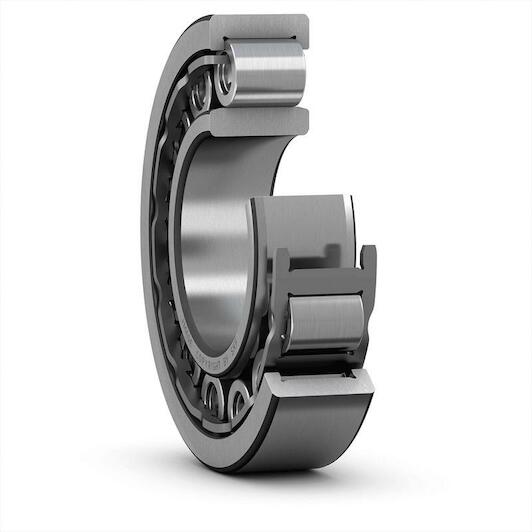

SKF NU 317 ECJ/C3 single-row cylindrical roller bearing 85 x 180 x 41 mm

Supplier number: SKF NU 317 ECJ/C3 | EAN 7316577043160

Recommended Retail Price €919.87

455.40 tax incl.

€376.36 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 25/09/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High radial capacity for demanding shafts

Practical benefits

High radial load capacity: Engineered to handle heavy radial loads, this Skf bearing delivers reliable performance at elevated operating speeds.
Simple and separable mounting: The separable design with a removable inner ring allows you to mount, inspect, and maintain machinery components effortlessly.
Built-in C3 internal clearance: The expanded internal radial clearance ensures you accommodate thermal expansion smoothly during continuous industrial operation.

In a nutshell

The right choise for

Handle heavy radial loads at high operating speeds with the Skf nu 317 ECJ/C3 single-row cylindrical roller bearing. Sized at 85 x 180 x 41 mm and featuring increased C3 radial internal clearance, this open bearing accommodates thermal shaft expansion in electric motors, gearboxes, and industrial pumps. Its nu design permits smooth axial displacement in both directions without generating friction or internal stresses. Thanks to the separable construction with a removable inner ring, you benefit from simple mounting and efficient machinery maintenance.

Product information FAQ

€455.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 85 mm
Width: 41 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Brass (sheet)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 180 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 85 mm
Width: 41 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Brass (sheet)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 180 mm
Basic static load rating: 335
Tolerance class: Normal
Radial internal clearance: C3
Loose flange: None
Cage: Sheet metal
Relubrication feature: Without
Reference speed: 4000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 4800
Bore diameter: 85
Basic dynamic load rating: 340
Coating: Without
Outside diameter: 180
Axial displacement capability: In both directions

Brand SKF
01070801
EAN 7316577043160
Supplier number SKF NU 317 ECJ/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has an inside diameter of 85 mm, an outside diameter of 180 mm, and a width of 41 mm.
What loads can this cylindrical roller bearing accommodate?: It accommodates high radial loads and allows axial displacement in both directions.
What does the C3 clearance rating mean for this SKF bearing?: C3 indicates a radial internal clearance greater than normal, accommodating thermal expansion.
Does this SKF bearing feature seals?: No, this is an open cylindrical roller bearing without seals.
Can this bearing be separated for installation?: Yes, it has a separable design that allows the inner and outer rings to be mounted separately.
