What are the dimensions of this bearing?

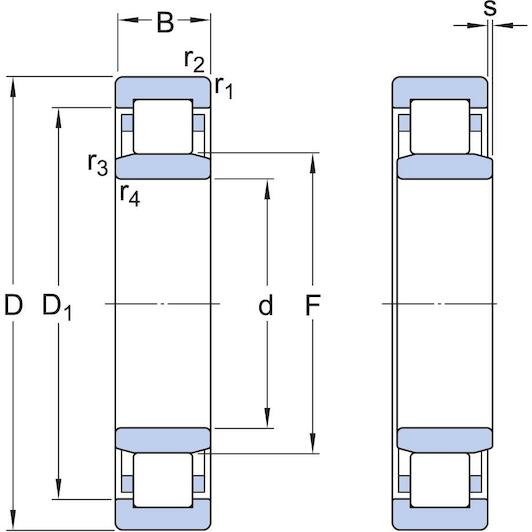

The bearing has an inside diameter of 80 mm, an outside diameter of 170 mm, and a width of 39 mm.

What does the C3 designation indicate?

C3 indicates radial internal clearance greater than normal, suitable for higher operating temperatures or thermal expansion.

What material is the bearing cage made of?

This bearing features a glass-fibre reinforced polyamide cage (plastic), designated by the P suffix.

Can an NU design bearing support axial loads?

No, the NU design has two flanges on the outer ring and none on the inner ring, supporting pure radial loads only.

Is this cylindrical roller bearing sealed?

No, it is an open bearing without built-in seals and requires appropriate external lubrication.

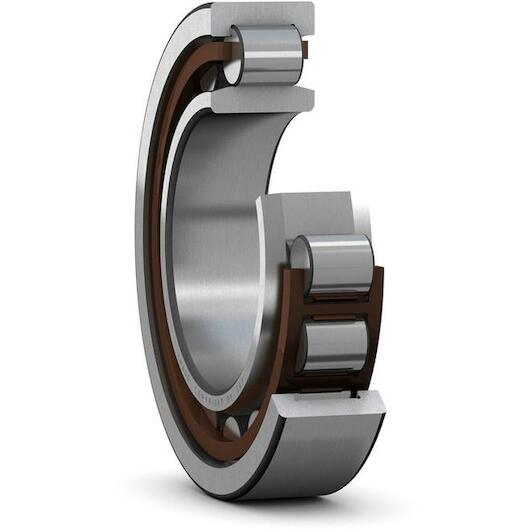

SKF NU 316 ECP/C3 single-row cylindrical roller bearing 80 x 170 x 39 mm

Supplier number: SKF NU 316 ECP/C3 | EAN 7316577031723

Recommended Retail Price €744.92

368.80 tax incl.

€304.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation with Skf NU 316 ECP/C3

Practical benefits

High radial load capacity: You reliably manage heavy radial loads at high operational speeds thanks to the optimized internal geometry.
Quick and easy mounting: The separable bearing design simplifies installation, component replacement, and maintenance routines on your machinery.
Accommodates thermal expansion: It permits smooth axial displacement in both directions to prevent stress from shaft expansion during operation.

In a nutshell

The right choise for

With the Skf nu 316 ECP/C3 single row cylindrical roller bearing, you reliably handle heavy radial loads in electric motors, gearboxes, and industrial pumps. Thanks to its C3 radial internal clearance and lightweight glass-fibre reinforced polyamide cage, it ensures smooth and quiet operation at high speeds and elevated temperatures. The nu design allows smooth axial displacement in both directions to accommodate thermal shaft expansion. Additionally, the separable construction makes mounting, dismounting, and machine maintenance fast and straightforward.

Product information FAQ

€368.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 39 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 170 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Width: 39 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 170 mm
Basic static load rating: 290
Tolerance class: Normal
Radial internal clearance: C3
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 4300
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 5000
Bore diameter: 80
Basic dynamic load rating: 300
Coating: Without
Outer diameter: 170
Axial displacement capability: In both directions

Brand SKF
01070719
EAN 7316577031723
Supplier number SKF NU 316 ECP/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has an inside diameter of 80 mm, an outside diameter of 170 mm, and a width of 39 mm.
What does the C3 designation indicate?: C3 indicates radial internal clearance greater than normal, suitable for higher operating temperatures or thermal expansion.
What material is the bearing cage made of?: This bearing features a glass-fibre reinforced polyamide cage (plastic), designated by the P suffix.
Can an NU design bearing support axial loads?: No, the NU design has two flanges on the outer ring and none on the inner ring, supporting pure radial loads only.
Is this cylindrical roller bearing sealed?: No, it is an open bearing without built-in seals and requires appropriate external lubrication.
