What are the dimensions of this bearing?

The bearing has a 50 mm bore diameter, a 110 mm outside diameter, and a 27 mm width.

What does the NU design mean for mounting and load?

The outer ring has two integral flanges and the inner ring has none, accommodating axial displacement in both directions.

What material is the cage made of?

The P designation indicates a glass-fibre reinforced polyamide (polymer) cage.

What internal clearance does this bearing have?

This bearing has standard Normal radial internal clearance (CN).

Does this cylindrical roller bearing have seals?

No, this is an open bearing without built-in seals.

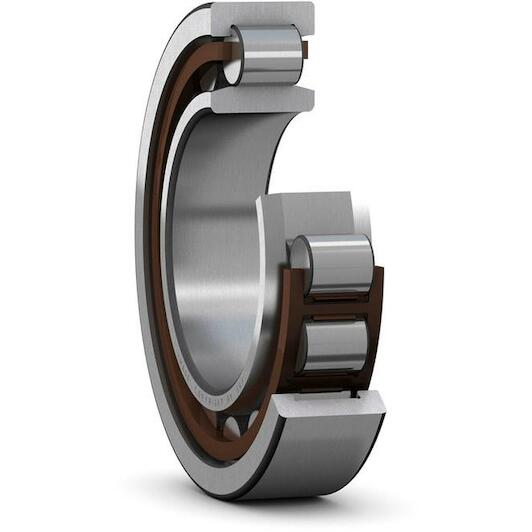

SKF NU 310 ECP single-row cylindrical roller bearing 50 x 110 x 27 mm

Supplier number: SKF NU 310 ECP | EAN 7316577023131

Recommended Retail Price €260.44

128.80 tax incl.

€106.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable operation with Skf

Practical benefits

High radial load capacity: Thanks to the cylindrical rollers, you handle heavy radial loads smoothly during demanding high-speed operations.
Smooth axial displacement: The NU design accommodates axial expansion in both directions, so you easily compensate for shaft length variations.
Quick and separable mounting: With the separable inner and outer rings, you mount and inspect each bearing component with ease.

In a nutshell

The right choise for

With the Skf nu 310 ecp single-row cylindrical roller bearing, you ensure reliable and smooth operation in demanding machinery such as electric motors, gearboxes, and pumps. Its cylindrical rollers effortlessly handle heavy radial loads. The nu design accommodates axial displacement in both directions, reliably absorbing thermal shaft expansion and preventing mechanical binding. Engineered with a glass-fibre reinforced polyamide cage, it reduces friction during high-speed operations. Additionally, the separable design makes mounting, inspection, and maintenance of the inner and outer rings quick and straightforward.

Product information FAQ

€128.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 110 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 110 mm
Basic static load rating: 112
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 6700
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 8000
Bore diameter: 50
Basic dynamic load rating: 127
Coating: Without
Outer diameter: 110
Axial displacement capability: In both directions

Brand SKF
01070093
EAN 7316577023131
Supplier number SKF NU 310 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 50 mm bore diameter, a 110 mm outside diameter, and a 27 mm width.
What does the NU design mean for mounting and load?: The outer ring has two integral flanges and the inner ring has none, accommodating axial displacement in both directions.
What material is the cage made of?: The P designation indicates a glass-fibre reinforced polyamide (polymer) cage.
What internal clearance does this bearing have?: This bearing has standard Normal radial internal clearance (CN).
Does this cylindrical roller bearing have seals?: No, this is an open bearing without built-in seals.
