What are the dimensions of this cylindrical roller bearing?

This bearing has an inside diameter of 50 mm, an outside diameter of 110 mm, and a width of 27 mm.

What does the C3 designation indicate?

The C3 designation indicates a larger internal radial clearance than standard, suitable for higher operating temperatures or speeds.

Can this bearing accommodate axial displacement?

Yes, the NU design features two flanges on the outer ring and none on the inner ring, accommodating axial displacement in both directions.

What material is the cage made from?

The cage of this ECP version is made from glass fiber reinforced polyamide (plastic).

Is this SKF bearing sealed?

No, this is an open bearing without seals, designed for external oil or grease lubrication.

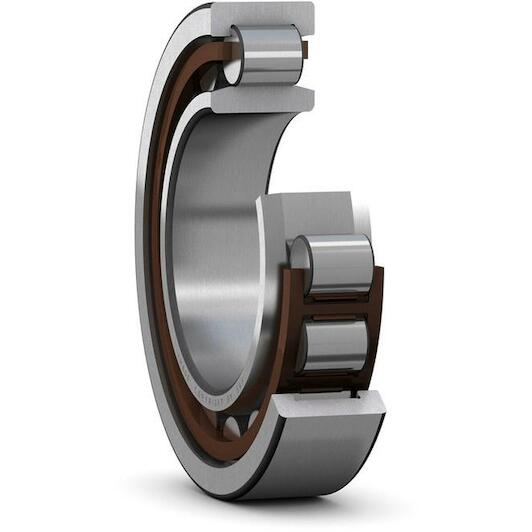

SKF NU 310 ECP/C3 single-row cylindrical roller bearing 50 x 110 x 27 mm

Supplier number: SKF NU 310 ECP/C3 | EAN 7316577031518

Recommended Retail Price €260.44

128.80 tax incl.

€106.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy radial capacity from Skf

Practical benefits

High radial load rating: You handle heavy radial forces at high rotational speeds with robust cylindrical roller geometry.
Fast and separable mounting: You install the inner and outer rings independently thanks to the practical separable bearing design.
Increased C3 internal clearance: You compensate for thermal expansion and maintain smooth operation under demanding operating temperatures.

In a nutshell

The right choise for

With the Skf nu 310 ECP/C3 single-row cylindrical roller bearing, you ensure reliable power transmission under demanding industrial conditions. Engineered to handle high radial loads at high rotational speeds, it keeps your machinery operating smoothly. The increased C3 radial internal clearance prevents shaft binding caused by thermal expansion during high-temperature runs. Thanks to the separable nu design, you can mount the inner and outer rings independently, making installation and maintenance fast and straightforward. Its lightweight glass fiber reinforced polyamide cage minimizes friction and optimizes performance. It is the dependable solution for electric motors, industrial gearboxes, and pumps requiring seamless operation.

Product information FAQ

€128.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 110 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 27 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 110 mm
Basic static load rating: 112
Tolerance class: Normal
Radial internal clearance: C3
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 6700
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 8000
Bore diameter: 50
Basic dynamic load rating: 127
Coating: Without
Outer diameter: 110
Axial displacement capability: In both directions

Brand SKF
01070304
EAN 7316577031518
Supplier number SKF NU 310 ECP/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this cylindrical roller bearing?: This bearing has an inside diameter of 50 mm, an outside diameter of 110 mm, and a width of 27 mm.
What does the C3 designation indicate?: The C3 designation indicates a larger internal radial clearance than standard, suitable for higher operating temperatures or speeds.
Can this bearing accommodate axial displacement?: Yes, the NU design features two flanges on the outer ring and none on the inner ring, accommodating axial displacement in both directions.
What material is the cage made from?: The cage of this ECP version is made from glass fiber reinforced polyamide (plastic).
Is this SKF bearing sealed?: No, this is an open bearing without seals, designed for external oil or grease lubrication.
