SKF

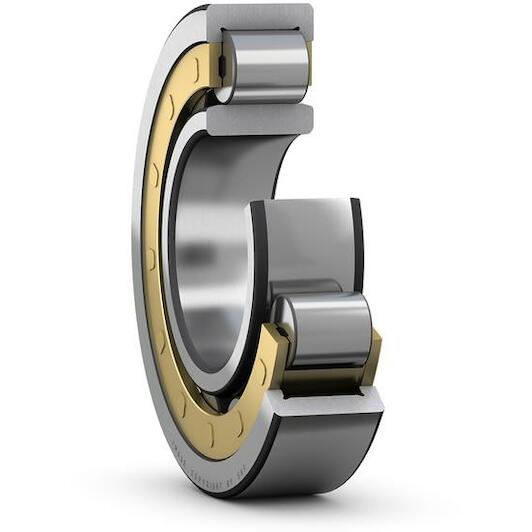

SKF NU 236 ECM Single-row cylindrical roller bearing with NU design 180 mm

Recommended Retail Price €4,575.72
2,265.40 tax incl.
€1,872.23 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 180 mm
  • Width: 52 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 320 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572554029
  • Supplier number: SKF NU 236 ECM
Inner diameter
180 mm
Width
52 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
320 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Basic static load rating
850
Cage
Machined metal
Reference speed
2200
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Candidate for remanufacturing
Yes
Bearing part
Complete bearing
Bore diameter
180
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
2400
Basic dynamic load rating
720
Coating
Without
Outside diameter
320
Axial displacement capability
In both directions
