skf_nu232ecmc3
SKF

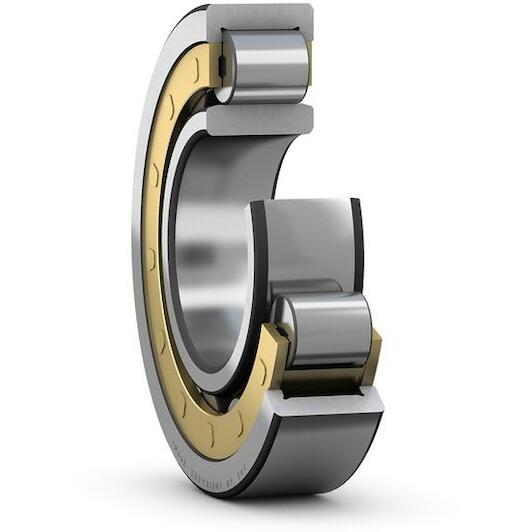

SKF NU 232 ECM/C3 Single-row cylindrical roller bearing with NU design 160 mm

Recommended Retail Price €3,283.82
1,625.80 tax incl.
€1,343.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 160 mm
  • Width: 48 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 290 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572308684
  • Supplier number: SKF NU 232 ECM/C3
Inner diameter
160 mm
Width
48 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
290 mm
Basic static load rating
680
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
2400
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Machined metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
2600
Bore diameter
160
Basic dynamic load rating
585
Coating
Without
Outside diameter
290
Axial displacement capability
In both directions
