SKF

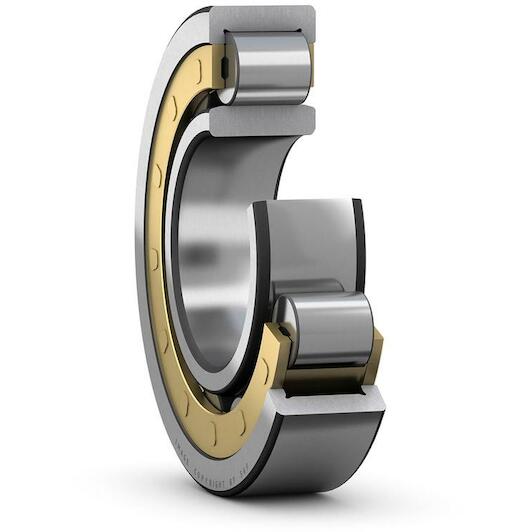

SKF NU 2317 ECM/C3 single-row cylindrical roller bearing 85 x 180 x 60 mm

Recommended Retail Price €2,701.49
1,337.40 tax incl.
€1,105.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 85 mm
  • Width: 60 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572164761
  • Supplier number: SKF NU 2317 ECM/C3
Inner diameter
85 mm
Width
60 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
180 mm
Basic static load rating
490
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Cage
Machined metal
Relubrication feature
Without
Reference speed
4000
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
4800
Bore diameter
85
Basic dynamic load rating
455
Coating
Without
Outside diameter
180
Axial displacement capability
In both directions
