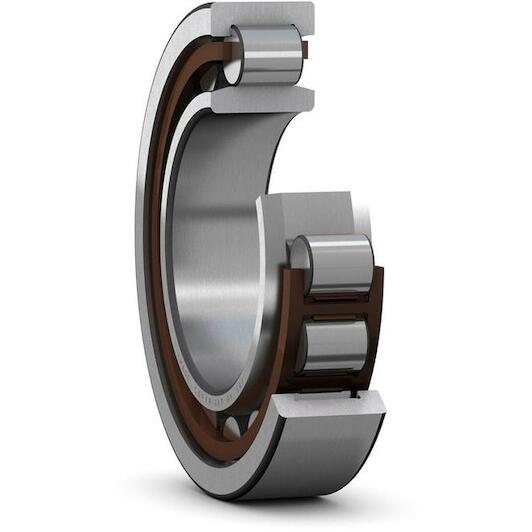

SKF NU 2315 ECP single-row cylindrical roller bearing 75 x 160 x 55 mm

Recommended Retail Price €1,047.26
518.40 tax incl.
€428.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 55 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 160 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577022714
  • Supplier number: SKF NU 2315 ECP
Inner diameter
75 mm
Width
55 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
160 mm
Basic static load rating
400
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Cage
Non-metallic
Relubrication feature
Without
Reference speed
4500
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
5300
Bore diameter
75
Basic dynamic load rating
380
Coating
Without
Outside diameter
160
Axial displacement capability
In both directions
