What are the exact dimensions of this SKF cylindrical roller bearing?

The bearing has a 55 mm bore diameter, a 120 mm outside diameter, and a 43 mm width.

What axial displacement does the NU design allow?

Because the inner ring has no flanges, the bearing accommodates axial displacement in both directions.

What cage material is used in this bearing?

The ECP designation indicates a glass-fibre reinforced polyamide (plastic) cage.

What radial internal clearance does this model have?

This bearing features standard normal radial internal clearance (CN class).

Is this cylindrical roller bearing sealed?

No, this is an open bearing without seals, intended for external oil or grease lubrication.

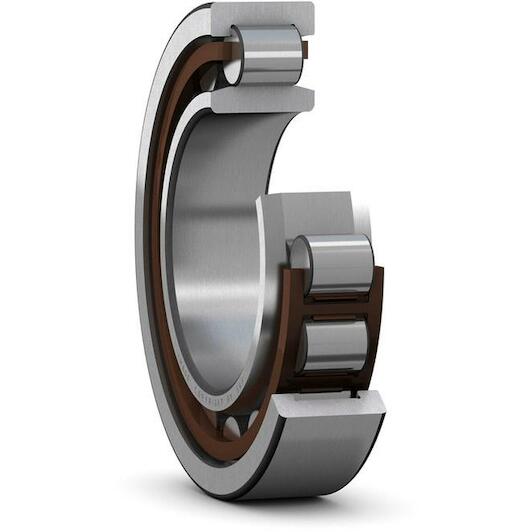

SKF NU 2311 ECP single-row cylindrical roller bearing 55 x 120 x 43 mm

Supplier number: SKF NU 2311 ECP | EAN 7316577027269

Recommended Retail Price €434.04

214.80 tax incl.

€177.52 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 17/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High radial capacity with Skf

Practical benefits

High radial load support: You handle heavy radial loads effortlessly thanks to the robust single-row roller geometry.
Quick and easy mounting: The separable design allows you to mount the inner and outer rings independently with ease.
Seamless axial displacement: You accommodate thermal shaft expansion smoothly during operation through the flangeless inner ring design.

In a nutshell

The right choise for

With the Skf nu 2311 ecp cylindrical roller bearing, you ensure reliable operation under heavy radial loads and high rotational speeds. Featuring dimensions of 55 x 120 x 43 mm and a single-row design, this bearing delivers high radial load capacity for electric motors, gearboxes, and pumps. The nu design with a flangeless inner ring smoothly accommodates axial thermal shaft expansion in both directions, preventing shaft binding in demanding assemblies. Its lightweight glass-fibre reinforced polyamide cage minimizes friction and operating noise. In addition, the separable construction lets you mount and maintain the inner and outer rings independently with ease.

Product information FAQ

€214.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 43 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 120 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 43 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 120 mm
Basic static load rating: 232
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 6000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 7000
Bore diameter: 55
Basic dynamic load rating: 232
Coating: Without
Outer diameter: 120
Axial displacement capability: In both directions

Brand SKF
01070682
EAN 7316577027269
Supplier number SKF NU 2311 ECP

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF cylindrical roller bearing?: The bearing has a 55 mm bore diameter, a 120 mm outside diameter, and a 43 mm width.
What axial displacement does the NU design allow?: Because the inner ring has no flanges, the bearing accommodates axial displacement in both directions.
What cage material is used in this bearing?: The ECP designation indicates a glass-fibre reinforced polyamide (plastic) cage.
What radial internal clearance does this model have?: This bearing features standard normal radial internal clearance (CN class).
Is this cylindrical roller bearing sealed?: No, this is an open bearing without seals, intended for external oil or grease lubrication.
