SKF

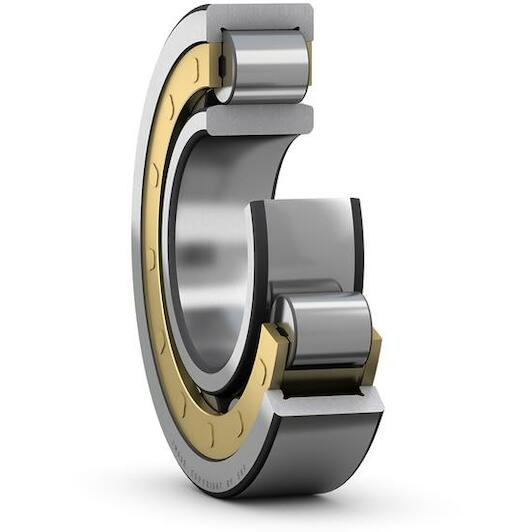

SKF NU 224 ECM Single-row cylindrical roller bearing with NU design 120 mm

Recommended Retail Price €1,812.24
897.20 tax incl.
€741.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 40 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571741116
  • Supplier number: SKF NU 224 ECM
Inner diameter
120 mm
Width
40 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
215 mm
Basic static load rating
430
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
3400
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Machined metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
3600
Bore diameter
120
Basic dynamic load rating
390
Coating
Without
Outside diameter
215
Axial displacement capability
In both directions
