What are the exact dimensions of this SKF bearing?

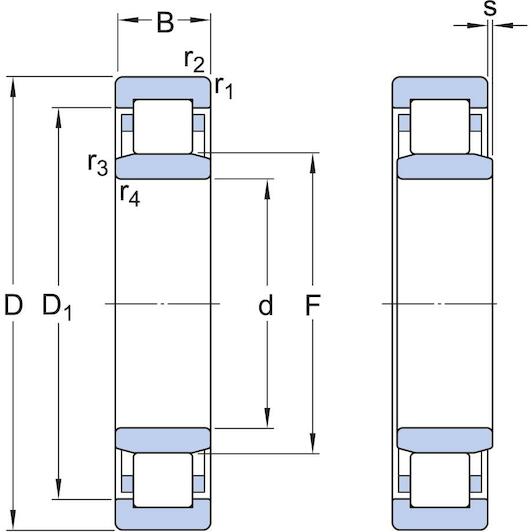

This bearing has a 60 mm bore diameter, a 110 mm outside diameter, and a width of 28 mm.

Can this bearing accommodate axial displacement?

Yes, the NU design allows axial displacement in both directions.

What radial internal clearance does this model have?

It features standard CN (Normal) radial internal clearance.

What material is used for the cage?

The cage in this ECP execution is made of glass-fibre reinforced polyamide (plastic).

Does this cylindrical roller bearing come sealed?

No, this is an open bearing without built-in seals.

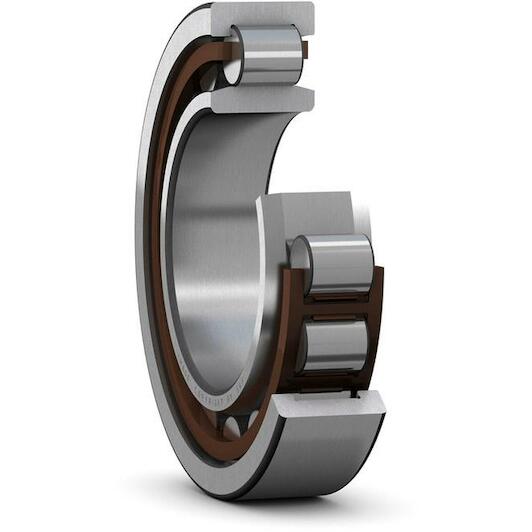

SKF NU 2212 ECP single-row cylindrical roller bearing 60 x 110 x 28 mm

Supplier number: SKF NU 2212 ECP | EAN 7316577113726

Recommended Retail Price €268.49

132.80 tax incl.

€109.75 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth operation with the Skf roller bearing

Practical benefits

High radial load capacity: You can handle heavy radial loads effortlessly thanks to the robust single-row cylindrical roller configuration.
Quick and simple installation: The separable NU design allows you to mount the inner and outer rings independently onto the shaft.
Reduced friction and wear: The lightweight polymer cage minimizes running friction, ensuring you achieve cooler running and a long service life.

In a nutshell

The right choise for

With the Skf nu 2212 ecp single row cylindrical roller bearing, you can handle heavy radial loads with confidence in demanding industrial machinery. Its separable nu design allows you to mount and service the inner and outer rings independently onto the shaft. The bearing accommodates axial displacement in both directions, making it an excellent non-locating choice for electric motors, gearboxes, and pumps subject to thermal shaft expansion. Additionally, the lightweight glass-fibre reinforced polyamide cage reduces internal friction and noise. Featuring dimensions of 60 x 110 x 28 mm, a cylindrical bore, and normal cn radial clearance, you gain reliable performance and smooth running.

Product information FAQ

€132.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 28 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 110 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 28 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 110 mm
Basic static load rating: 153
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 6700
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 7500
Bore diameter: 60
Basic dynamic load rating: 146
Coating: Without
Outer diameter: 110
Axial displacement capability: In both directions

Brand SKF
01070155
EAN 7316577113726
Supplier number SKF NU 2212 ECP

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF bearing?: This bearing has a 60 mm bore diameter, a 110 mm outside diameter, and a width of 28 mm.
Can this bearing accommodate axial displacement?: Yes, the NU design allows axial displacement in both directions.
What radial internal clearance does this model have?: It features standard CN (Normal) radial internal clearance.
What material is used for the cage?: The cage in this ECP execution is made of glass-fibre reinforced polyamide (plastic).
Does this cylindrical roller bearing come sealed?: No, this is an open bearing without built-in seals.
