What are the dimensions of this SKF cylindrical roller bearing?

This bearing has a 50 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.

What characterizes the NU design?

The NU design features two flanges on the outer ring and none on the inner ring, accommodating axial displacement in both directions.

What material is the cage made of?

The cage of the SKF NU 2210 ECP is made of glass-fibre reinforced polyamide (plastic).

What internal radial clearance does this bearing have?

This bearing features standard normal radial internal clearance (designated as CN).

Does this cylindrical roller bearing come with seals?

No, this is an open bearing without integrated seals, designed for external application lubrication.

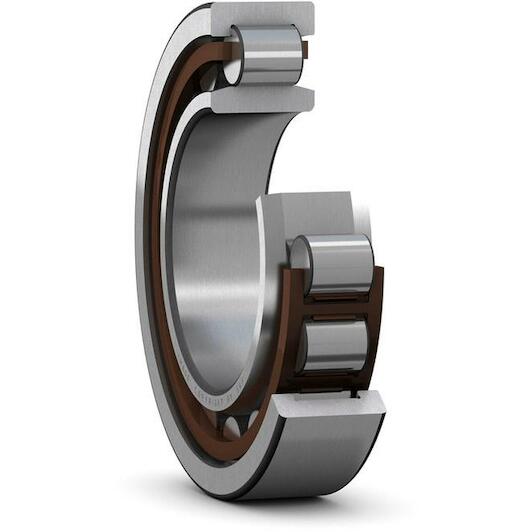

SKF NU 2210 ECP single-row cylindrical roller bearing 50 x 90 x 23 mm

Supplier number: SKF NU 2210 ECP | EAN 7316577113719

Recommended Retail Price €156.90

77.60 tax incl.

€64.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Ordered before 20:00 - delivered as of 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High radial load capacity and efficiency

Practical benefits

Reliable Skf engineering performance: You handle heavy radial loads at high rotational speeds with dependable Skf precision and stability.
Low friction polyamide cage: The lightweight polymer cage reduces internal friction, so you achieve smoother running with minimal heat buildup.
Quick and separable assembly: Thanks to the separable ring design, you install, inspect, and maintain machine components with complete ease.

In a nutshell

The right choise for

With the Skf nu 2210 ecp single row cylindrical roller bearing, you reliably support heavy radial loads in electric motors, industrial gearboxes, and pumps. Its nu design accommodates axial shaft displacement in both directions, effectively preventing internal bearing stress from thermal expansion. The lightweight glass-fibre reinforced polyamide cage reduces friction and noise, ensuring smooth running and minimal heat buildup at high speeds. Thanks to the separable ring design, you can install, inspect, and maintain this 50 x 90 x 23 mm open bearing with complete ease.

Product information FAQ

€77.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 23 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 90 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 23 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 90 mm
Basic static load rating: 88
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 8500
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 9000
Bore diameter: 50
Basic dynamic load rating: 90
Coating: Without
Outer diameter: 90
Axial displacement capability: In both directions

Brand SKF
01070153
EAN 7316577113719
Supplier number SKF NU 2210 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cylindrical roller bearing?: This bearing has a 50 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.
What characterizes the NU design?: The NU design features two flanges on the outer ring and none on the inner ring, accommodating axial displacement in both directions.
What material is the cage made of?: The cage of the SKF NU 2210 ECP is made of glass-fibre reinforced polyamide (plastic).
What internal radial clearance does this bearing have?: This bearing features standard normal radial internal clearance (designated as CN).
Does this cylindrical roller bearing come with seals?: No, this is an open bearing without integrated seals, designed for external application lubrication.
