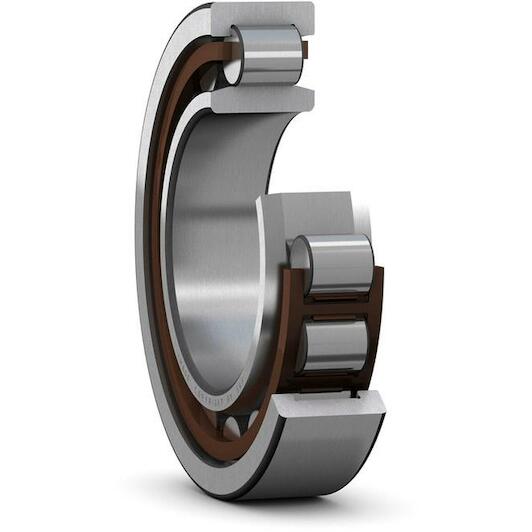

SKF NU 2210 ECP/C3 single-row cylindrical roller bearing 50 x 90 x 23 mm

SKF
Supplier number: SKF NU 2210 ECP/C3 | EAN 7316577030221
Recommended Retail Price €156.90
77.60 tax incl.
€64.13 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Ordered before 20:00 - delivered as of 10/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€77.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 50 mm
  • Width: 23 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Plastic
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 90 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
50 mm
Width
23 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Plastic
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
90 mm
Basic static load rating
88
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Cage
Non-metallic
Relubrication feature
Without
Reference speed
8500
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
9000
Bore diameter
50
Basic dynamic load rating
90
Coating
Without
Outside diameter
90
Axial displacement capability
In both directions
  • Brand SKF
  • EAN 7316577030221
  • Supplier number SKF NU 2210 ECP/C3
