skf_nu217ecjc3
SKF

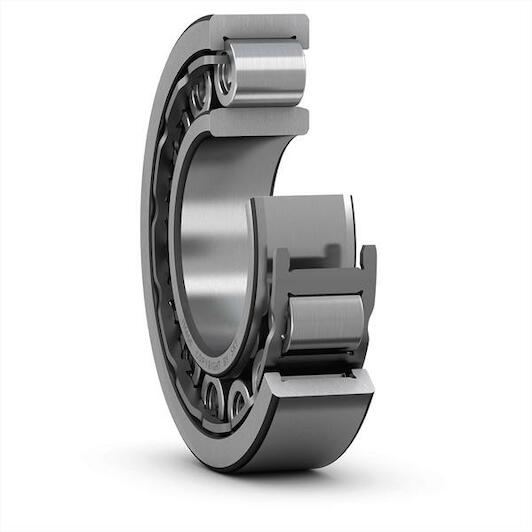

SKF NU 217 ECJ/C3 Single-row cylindrical roller bearing with NU design 85 mm

Recommended Retail Price €568.41
281.40 tax incl.
€232.56 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 85 mm
  • Width: 28 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316575150396
  • Supplier number: SKF NU 217 ECJ/C3
Inner diameter
85 mm
Width
28 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
150 mm
Basic static load rating
200
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
4800
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Sheet metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
5300
Bore diameter
85
Basic dynamic load rating
190
Coating
Without
Outside diameter
150
Axial displacement capability
In both directions
