What are the dimensions of this SKF roller bearing?

This bearing has a 75 mm bore diameter, a 130 mm outside diameter, and a width of 25 mm.

What does the NU design mean for operation and mounting?

The outer ring has two integral flanges while the inner ring has none. The bearing is separable and accommodates axial displacement in both directions.

What type of load is this bearing designed for?

This single row cylindrical roller bearing is designed to handle high radial loads at high speeds.

What material is the cage made of?

The cage design (ECP) is made of glass-fibre reinforced polyamide (plastic).

Does this bearing include seals?

No, this is an open bearing without built-in seals and requires external lubrication.

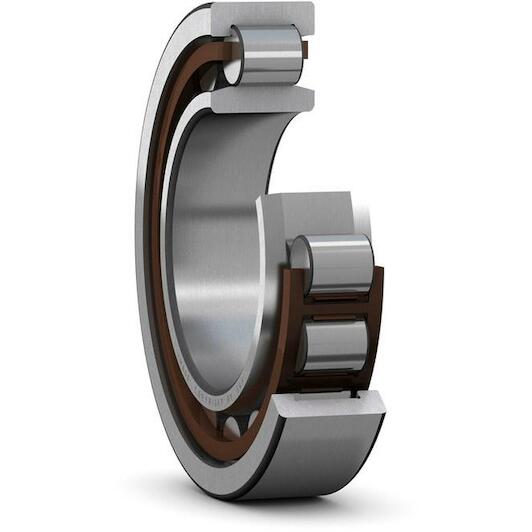

SKF NU 215 ECP single-row cylindrical roller bearing 75 x 130 x 25 mm

Supplier number: SKF NU 215 ECP | EAN 7316577028594

Recommended Retail Price €359.35

177.80 tax incl.

€146.94 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 17/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable performance under heavy radial loads

Practical benefits

High radial load capacity: The single row roller layout provides you with exceptional load support across demanding machinery and continuous operations.
Effortless separable mounting design: The separable rings let you mount and maintain the Skf NU 215 ECP bearing quickly directly on the shaft.
Smooth running polyamide cage: The engineered polymer cage minimizes friction and heat buildup, helping you achieve smooth rotation at high speeds.

In a nutshell

The right choise for

With the Skf nu 215 ecp single row cylindrical roller bearing, you gain dependable performance under heavy radial loads at high operating speeds. Featuring a 75 mm bore, 130 mm outside diameter, and 25 mm width, its separable nu design allows for quick, straightforward mounting on the shaft. The separable rings effortlessly accommodate axial displacement and shaft thermal expansion in both directions. In addition, the glass-fibre reinforced polyamide cage reduces friction and heat generation, ensuring smooth rotation across demanding industrial gearboxes, electric motors, pumps, and compressors during continuous operation.

Product information FAQ

€177.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 75 mm
Width: 25 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 130 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 75 mm
Width: 25 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 130 mm
Basic static load rating: 156
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 5600
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 6000
Bore diameter: 75
Basic dynamic load rating: 150
Coating: Without
Outer diameter: 130
Axial displacement capability: In both directions

Brand SKF
01070075
EAN 7316577028594
Supplier number SKF NU 215 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF roller bearing?: This bearing has a 75 mm bore diameter, a 130 mm outside diameter, and a width of 25 mm.
What does the NU design mean for operation and mounting?: The outer ring has two integral flanges while the inner ring has none. The bearing is separable and accommodates axial displacement in both directions.
What type of load is this bearing designed for?: This single row cylindrical roller bearing is designed to handle high radial loads at high speeds.
What material is the cage made of?: The cage design (ECP) is made of glass-fibre reinforced polyamide (plastic).
Does this bearing include seals?: No, this is an open bearing without built-in seals and requires external lubrication.
