What are the dimensions of this bearing?

The bearing has a 65 mm inner diameter, a 120 mm outer diameter, and a width of 23 mm.

What characterizes the NU design of this cylindrical roller bearing?

It features two integral flanges on the outer ring and none on the inner ring, allowing axial displacement in both directions.

What material is the cage made from?

This bearing is equipped with a polyamide plastic cage.

What radial internal clearance does this bearing have?

It has standard normal radial internal clearance (CN).

Is this bearing sealed?

No, this is an open bearing without built-in seals, designed for external oil or grease lubrication.

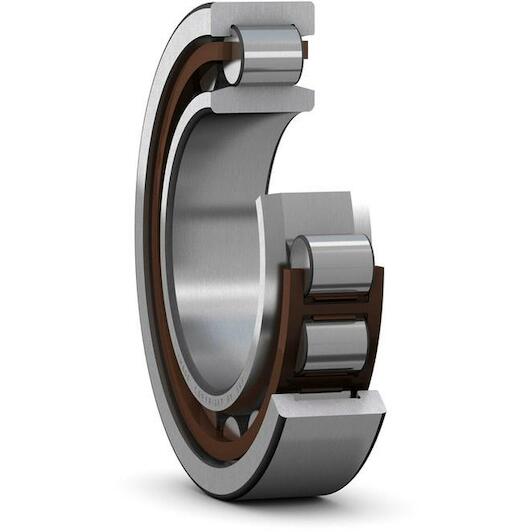

SKF NU 213 ECP Single-row cylindrical roller bearing 65 x 120 x 23 mm

Supplier number: SKF NU 213 ECP | EAN 7316577031457

Recommended Retail Price €286.66

141.80 tax incl.

€117.19 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

High radial load capacity: You support heavy radial loads effortlessly thanks to the optimized internal cylindrical roller geometry.
Simple mounting and maintenance: The separable design allows you to install and service the inner and outer rings independently.
Smooth axial displacement: You accommodate thermal shaft expansion in both directions without inducing unwanted internal stress.

In a nutshell

The right choise for

Support heavy radial loads effortlessly in electric motors, gearboxes, and pumps with the Skf nu 213 ecp single-row cylindrical roller bearing. Featuring an nu design with two integral flanges on the outer ring and a flangeless inner ring, it smoothly accommodates thermal shaft expansion in both directions without creating unwanted internal stress. The optimized polyamide cage minimizes running friction while supporting high rotational speeds. In addition, the separable construction makes mounting, dismounting, and maintenance of the inner and outer rings quick and straightforward.

Product information FAQ

€141.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 23 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 120 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 23 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 120 mm
Basic static load rating: 118
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 6300
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 6700
Bore diameter: 65
Basic dynamic load rating: 122
Coating: Without
Outer diameter: 120
Axial displacement capability: In both directions

Brand SKF
01070073
EAN 7316577031457
Supplier number SKF NU 213 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 65 mm inner diameter, a 120 mm outer diameter, and a width of 23 mm.
What characterizes the NU design of this cylindrical roller bearing?: It features two integral flanges on the outer ring and none on the inner ring, allowing axial displacement in both directions.
What material is the cage made from?: This bearing is equipped with a polyamide plastic cage.
What radial internal clearance does this bearing have?: It has standard normal radial internal clearance (CN).
Is this bearing sealed?: No, this is an open bearing without built-in seals, designed for external oil or grease lubrication.
