SKF NU 207 ECP single-row cylindrical roller bearing 35 x 72 x 17 mm

Supplier number: SKF NU 207 ECP | EAN 7316577029294

Recommended Retail Price €131.21

64.80 tax incl.

€53.55 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable heavy performance with Skf roller bearings

Practical benefits

High radial load capacity: You effortlessly handle heavy radial loads at demanding speeds thanks to the optimized roller design.
Smooth axial expansion accommodation: The NU design allows free axial displacement in both directions to absorb thermal shaft movement.
Simple and quick mounting: You save time during maintenance and installation thanks to separable rings and a lightweight polyamide cage.

In a nutshell

The right choise for

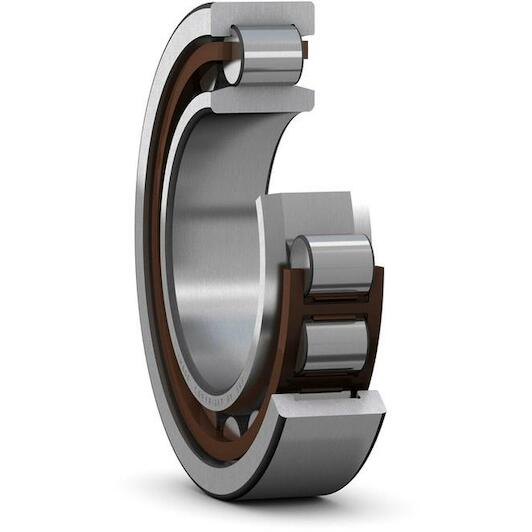

With the Skf nu 207 ecp single row cylindrical roller bearing, you achieve outstanding reliability under heavy radial loads and high speeds. The proven nu design, featuring two integral flanges on the outer ring and none on the inner ring, smoothly accommodates axial shaft displacement caused by thermal expansion in both directions. Its separable construction allows you to mount the inner and outer rings independently, while the glass fibre reinforced polyamide cage ensures smooth running. Measuring 35 x 72 x 17 mm, this bearing is an ideal choice for electric motors, industrial gearboxes, pumps, and compressors.

Product information FAQ

€64.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 72 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 72 mm
Basic static load rating: 48
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 11000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 12000
Bore diameter: 35
Basic dynamic load rating: 56
Coating: Without
Outside diameter: 72
Axial displacement capability: In both directions

Brand SKF
01070067
EAN 7316577029294
Supplier number SKF NU 207 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 35 mm bore diameter, a 72 mm outside diameter, and a width of 17 mm.
What does the NU design mean for this SKF bearing?: The outer ring has two integral flanges and the inner ring has none, accommodating axial displacement in both directions.
Is this SKF cylindrical roller bearing separable?: Yes, the separable design allows you to mount the inner and outer rings independently.
What material is the cage made of?: The ECP version features a glass fibre reinforced polyamide cage.
What internal radial clearance does this bearing have?: This bearing has a standard radial internal clearance (CN).
