What are the dimensions of this cylindrical roller bearing?

The bearing features a 35 mm inside diameter, a 72 mm outside diameter, and a width of 17 mm.

What does the C3 clearance designation mean?

C3 denotes greater radial internal clearance than standard, ideal for high speeds or thermal expansion.

Can this bearing handle axial loads?

No, the NU design has no flanges on the inner ring, allowing axial displacement in both directions without supporting axial loads.

What material is the cage made from?

The cage is made from glass fibre reinforced polyamide (polymer), reducing weight and friction.

Does this SKF bearing have integrated seals?

No, it is an open-type bearing without built-in seals, requiring external lubrication and protection.

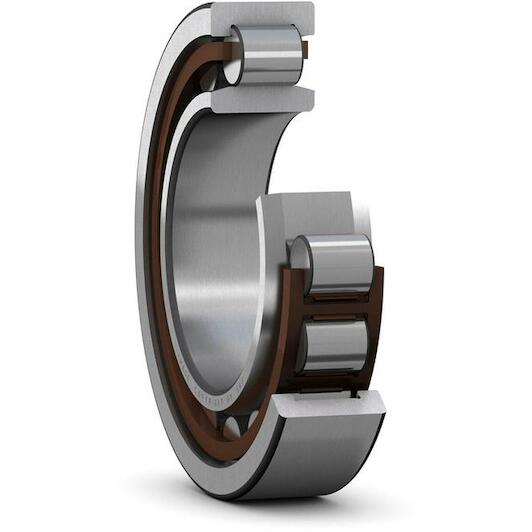

SKF NU 207 ECP/C3 single-row cylindrical roller bearing 35 x 72 x 17 mm

Supplier number: SKF NU 207 ECP/C3 | EAN 7316577029522

Recommended Retail Price €131.21

64.80 tax incl.

€53.55 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 15/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High radial capacity for demanding machinery

Practical benefits

Skf bearing for high speeds: You achieve heavy radial load support with reduced friction for smooth and efficient continuous operation.
Built for thermal expansion: The C3 internal clearance easily accommodates heat-induced shaft expansion during heavy-duty running conditions.
Easy and separable mounting: The separable design allows you to mount the inner and outer rings independently for rapid installation.

In a nutshell

The right choise for

With the Skf nu 207 ECP/C3 single row cylindrical roller bearing, you reliably support heavy radial loads in electric motors, gearboxes, and pumps. Its optimized single row design with a lightweight polymer cage ensures low friction, reduced vibration, and smooth performance at high rotational speeds. The C3 radial internal clearance readily accommodates thermal shaft expansion during continuous operation, preventing internal stresses. In addition, the separable nu design allows you to mount the inner and outer rings independently for quick, straightforward installation.

Product information FAQ

€64.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 72 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 72 mm
Basic static load rating: 48
Tolerance class: Normal
Radial internal clearance: C3
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 11000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 12000
Bore diameter: 35
Basic dynamic load rating: 56
Coating: Without
Outer diameter: 72
Axial displacement capability: In both directions

Brand SKF
01070732
EAN 7316577029522
Supplier number SKF NU 207 ECP/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this cylindrical roller bearing?: The bearing features a 35 mm inside diameter, a 72 mm outside diameter, and a width of 17 mm.
What does the C3 clearance designation mean?: C3 denotes greater radial internal clearance than standard, ideal for high speeds or thermal expansion.
Can this bearing handle axial loads?: No, the NU design has no flanges on the inner ring, allowing axial displacement in both directions without supporting axial loads.
What material is the cage made from?: The cage is made from glass fibre reinforced polyamide (polymer), reducing weight and friction.
Does this SKF bearing have integrated seals?: No, it is an open-type bearing without built-in seals, requiring external lubrication and protection.
