What are the dimensions of this bearing?

The bearing has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 16 mm.

What type of load can the NU 206 ECP bearing accommodate?

This single row cylindrical roller bearing is designed to accommodate heavy radial loads at high speeds.

Can this bearing accommodate axial displacement?

Yes, the NU design features two flanges on the outer ring, allowing axial displacement in both directions.

What material is the cage made from?

The ECP designation indicates that the bearing is fitted with a glass-fibre reinforced polyamide cage.

Does this bearing come sealed?

No, this is an open bearing without seals and requires external lubrication.

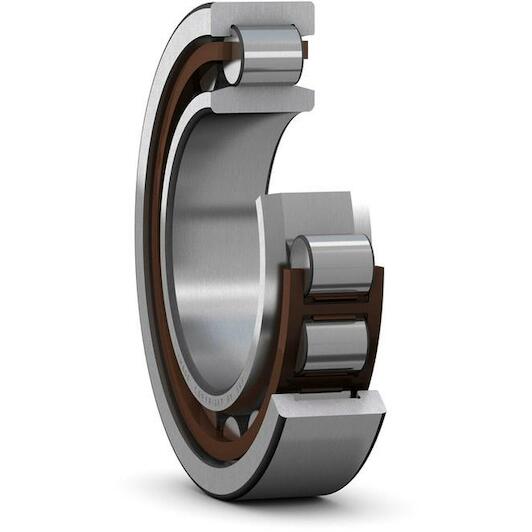

SKF NU 206 ECP Single-row cylindrical roller bearing 30 x 62 x 16 mm

Supplier number: SKF NU 206 ECP | EAN 7316577030474

Recommended Retail Price €107.00

52.80 tax incl.

€43.64 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth performance for heavy radial loads

Practical benefits

High radial load capacity: This Skf cylindrical roller bearing lets you handle heavy radial forces effortlessly even at high operational speeds.
Quick and easy mounting: You can install and maintain components easily thanks to the separable design with a loose inner ring.
Low-friction polyamide cage: The reinforced plastic cage reduces friction and heat generation, ensuring you get smooth rotation and extended equipment service life.

In a nutshell

The right choise for

With the Skf nu 206 ecp single row cylindrical roller bearing, you can handle heavy radial loads effortlessly at high operational speeds. Featuring a cylindrical bore with dimensions of 30 x 62 x 16 mm, the separable nu design with a loose inner ring enables quick installation and straightforward maintenance. It also accommodates axial displacement in both directions. The glass-fibre reinforced polyamide cage reduces friction and noise, ensuring smooth running and extended service life. This unsealed open bearing provides reliable support in electric motors, pumps, compressors, and industrial gearboxes.

Product information FAQ

€52.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm
Basic static load rating: 36.5
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 13000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 14000
Bore diameter: 30
Basic dynamic load rating: 44
Coating: Without
Outer diameter: 62
Axial displacement capability: In both directions

Brand SKF
01070066
EAN 7316577030474
Supplier number SKF NU 206 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 16 mm.
What type of load can the NU 206 ECP bearing accommodate?: This single row cylindrical roller bearing is designed to accommodate heavy radial loads at high speeds.
Can this bearing accommodate axial displacement?: Yes, the NU design features two flanges on the outer ring, allowing axial displacement in both directions.
What material is the cage made from?: The ECP designation indicates that the bearing is fitted with a glass-fibre reinforced polyamide cage.
Does this bearing come sealed?: No, this is an open bearing without seals and requires external lubrication.
