SKF

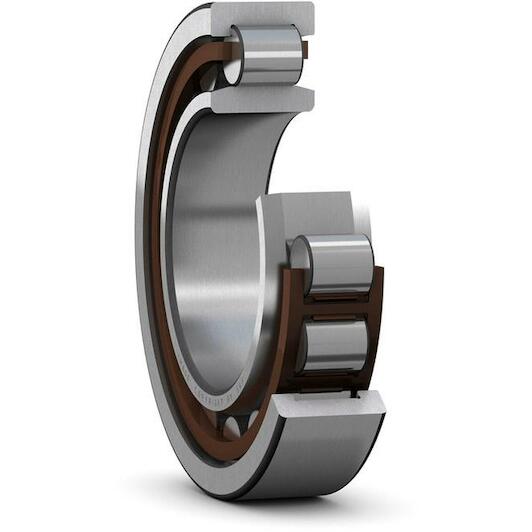

SKF NU 202 ECP/C3 single-row cylindrical roller bearing cylindrical 15 x 35 x 11 mm

Recommended Retail Price €79.65
39.40 tax incl.
€32.56 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 11 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 35 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570896428
  • Supplier number: SKF NU 202 ECP/C3
Inner diameter
15 mm
Width
11 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
35 mm
Loose flange
None
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
C3
Cage
Non-metallic
Basic static load rating
10.2
Relubrication feature
Without
Reference speed
22000
Lubricant
None
Sealing
Without
Locating feature, bearing outer ring
None
Basic dynamic load rating
12.5
Number of flanges, outer ring
2
Limiting speed
26000
Bore diameter
15
Coating
Without
Outside diameter
35
Axial displacement capability
In both directions
