skf_nu1038mc3

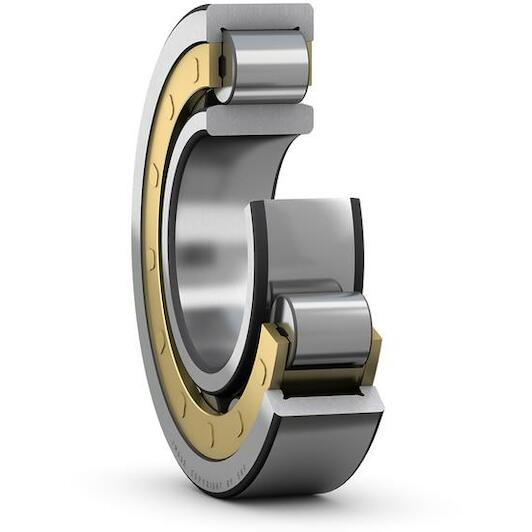

SKF NU 1038 M/C3 Single-row cylindrical roller bearing with NU design 190 mm

Supplier number: SKF NU 1038 M/C3 | EAN 7316574213047
Recommended Retail Price €4,383.76
2,170.40 tax incl.
€1,793.72 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Free shipping
  • Delivery by DHL


€2,170.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 190 mm
  • Width: 46 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Sealing (bearing): Without seals
  • Bore type: Cylindrical
  • Outer diameter: 290 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

All Features

Inner diameter
190 mm
Width
46 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Sealing (bearing)
Without seals
Bore type
Cylindrical
Outer diameter
290 mm
Basic static load rating
500
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
2600
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Machined metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
2600
Bore diameter
190
Basic dynamic load rating
400
Coating
Without
Outer diameter
290
Axial displacement capability
In both directions
  • Brand SKF
  • EAN 7316574213047
  • Supplier number SKF NU 1038 M/C3
