SKF

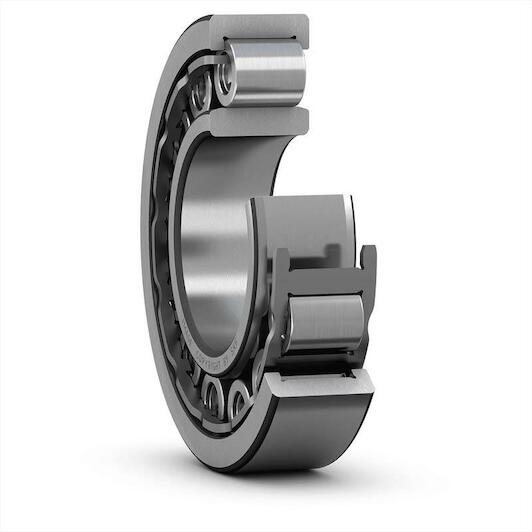

SKF NU 1006 single-row cylindrical roller bearing 30 x 55 x 13 mm

Recommended Retail Price €154.34
76.40 tax incl.
€63.14 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 13 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 55 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577012883
  • Supplier number: SKF NU 1006
Inner diameter
30 mm
Width
13 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
55 mm
Loose flange
None
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Cage
Sheet metal
Basic static load rating
17.3
Relubrication feature
Without
Reference speed
15000
Lubricant
None
Sealing
Without
Locating feature, bearing outer ring
None
Basic dynamic load rating
17.9
Number of flanges, outer ring
2
Limiting speed
15000
Bore diameter
30
Coating
Without
Outside diameter
55
Axial displacement capability
In both directions
