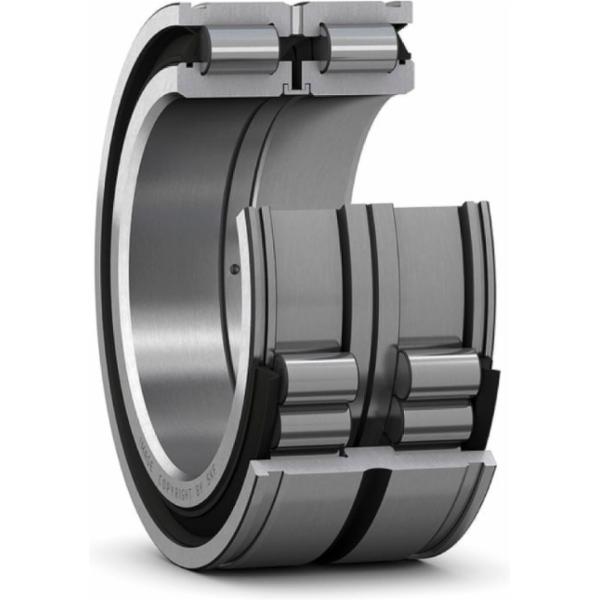

Product description:
- Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
- The rollers are guided by fixed track collars on one of the bearing rings
- The bearing ring with the track collars and roller set can be slid off from the other ring
- This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
- A cylindrical roller bearing can withstand (limited) axial displacement
- Full complement cylindrical roller bearings: contain as many rollers as possible
- Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
-
Inner diameter: 170 mm
-
Width: 122 mm
-
Number of rows: 2
-
Radial clearance: CN (Normal)
-
Material (cage): Not applicable
-
Seal (bearing): Double-sided sealed
-
Material (bearing seal): Not applicable
-
Bore type: Cylindrical
-
Outer diameter: 260 mm
Specifications / All features
-
Brand:
SKF
-
02028530
-
EAN:
7316577296955
-
Supplier number:
SKF NNF 5034 ADA-2LSV
- Inner diameter
- 170 mm
- Width
- 122 mm
- Number of rows
- 2
- Radial clearance
- CN (Normal)
- Material (cage)
- Not applicable
- Seal (bearing)
- Double-sided sealed
- Material (bearing seal)
- Not applicable
- Bore type
- Cylindrical
- Outer diameter
- 260 mm
- Basic static load rating
- 1,800 kN
- Tolerance class
- Normal
- Radial internal clearance
- CN
- Loose flange
- None
- Number of flanges, inner ring
- 2
- Relubrication feature
- With
- Lubricant
- Grease
- Sealing type
- Contact
- Cage
- Without
- Locating feature, bearing outer ring
- Snap ring groove
- Bearing part
- Complete bearing
- Sealing
- Seal on both sides
- Number of flanges, outer ring
- 1
- Limiting speed
- 480 r/min
- Bore diameter
- 170 mm
- Basic dynamic load rating
- 1,010 kN
- Coating
- Without
- Outside diameter
- 260 mm
- Axial displacement capability
- None
