SKF NN 3011 TN/SP double-row super-precision cylindrical roller bearing 55 x 90 x 26 mm

Supplier number: SKF NN 3011 TN/SP | EAN 7316572120668

Recommended Retail Price €1,184.44

586.40 tax incl.

€484.63 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Superior spindle stability with Skf

Practical benefits

High radial load capacity: The double row roller layout enables you to support demanding radial loads with unmatched structural rigidity.
Smooth and quiet operation: A durable polyamide cage reduces friction and heat build-up, ensuring you achieve optimal precision during continuous machining.
Fast and simple installation: With its separable ring configuration and cylindrical bore, you complete mounting and maintenance procedures with absolute ease.

In a nutshell

The right choise for

Achieve maximum spindle rigidity and rotational accuracy with the Skf nn 3011 TN/SP double row super-precision cylindrical roller bearing. Its double row roller layout effortlessly handles heavy radial loads and eliminates shaft deflection during demanding machining tasks. The lightweight polyamide cage minimizes friction, vibrations, and heat generation at high operating speeds. Featuring a 55 mm cylindrical bore, a 90 mm outside diameter, a 26 mm width, and C1 radial internal clearance, this open bearing accommodates axial displacement in both directions. This separable design simplifies mounting and ensures smooth, highly reliable operation.

Product information FAQ

€586.40

tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 26 mm
Number of rows: 2
Radial clearance: C1
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 90 mm

Product description

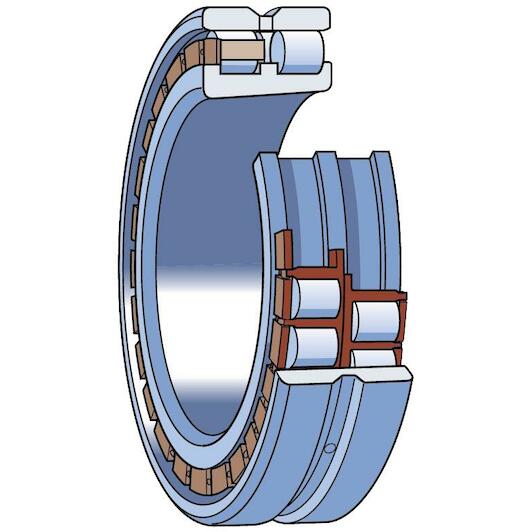

Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit.

Very high radial load carrying capacity
High rigidity and high running accuracy
Minimize noise, vibration and heat generation
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 26 mm
Number of rows: 2
Radial clearance: C1
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 90 mm
Relubrication feature: Without
Radial internal clearance: C1
Loose flange: None
Basic static load rating: 96.5
Attainable speed for grease lubrication: 10000
Lubricant: None
Design: NN
Cage: Non-metallic
Material, bearing: Bearing steel
Bearing part: Complete bearing
Number of flanges, inner ring: 3
Tolerance class: Class SP (SP)
Basic dynamic load rating: 69.3
Sealing: Without
Attainable speed for oil-air lubrication: 12000
Bore diameter: 55
Coating: Without
Outside diameter: 90

Brand SKF
01990297
EAN 7316572120668
Supplier number SKF NN 3011 TN/SP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cylindrical roller bearing?: This bearing has a 55 mm bore diameter, a 90 mm outside diameter, and a width of 26 mm.
What bore type and radial clearance does this bearing have?: It features a cylindrical bore and a C1 radial internal clearance class.
What does the TN/SP designation signify for SKF?: TN indicates a non-metallic plastic (polyamide) cage and SP indicates the super-precision tolerance class.
Can this bearing accommodate axial displacement?: Yes, the NN design accommodates axial displacement in both directions.
Does this cylindrical roller bearing have built-in seals?: No, this super-precision cylindrical roller bearing is an open type without seals.
