SKF

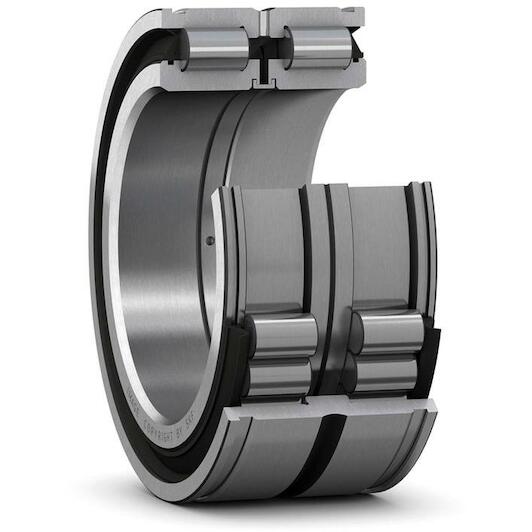

SKF NNF 5013 ADB-2LSV double-row cylindrical roller bearing 65 x 100 x 46 mm

Recommended Retail Price €875.23
433.20 tax incl.
€358.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in both directions
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 46 mm
  • Number of rows: 2
  • Radial clearance: CN (Normal)
  • Material (cage): Not applicable
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572507773
  • Supplier number: SKF NNF 5013 ADB-2LSV
Inner diameter
65 mm
Width
46 mm
Number of rows
2
Radial clearance
CN (Normal)
Material (cage)
Not applicable
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
100 mm
Basic static load rating
224
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Number of flanges, inner ring
2
Relubrication feature
With
Lubricant
Grease
Sealing type
Contact
Cage
Without
Locating feature, bearing outer ring
Snap ring groove
Bearing part
Complete bearing
Sealing
Seal on both sides
Number of flanges, outer ring
1
Limiting speed
1300
Bore diameter
65
Basic dynamic load rating
138
Coating
Without
Outside diameter
100
Axial displacement capability
None
